How to Use an Air Compressor for Tires: A Complete Guide

To use an air compressor for tires, connect it to your vehicle’s 12V power with the engine running, attach the air chuck securely to the valve stem, set your target PSI, and inflate. Stop and check the pressure with the compressor off, the gauge is inaccurate while air is flowing. If a repair kit can’t reach 1.8 bar (26 PSI) within 15 minutes, the tire is not repairable and the vehicle should not be driven.

That 15-minute window is a hard stop printed in a manufacturer’s emergency kit manual. Miss it, and you’re waiting for a tow.

The rest is matching your compressor’s real capability to the job. A portable 12V unit isn’t a shop compressor. Its duty cycle, how long it can run before it overheats, dictates everything. Push past it, and the motor cooks. This guide walks through the specs that matter, the mistakes that break compressors, and the one gauge reading you should never trust.

Key Takeaways

• Your vehicle’s engine must be running to power a 12V portable compressor. Using it with the engine off can drain the battery or trip a fuse in under two minutes.
• The pressure gauge is inaccurate while the compressor is running. For a true reading, you must stop inflation, let the gauge settle, then check.
• Portable compressors have strict duty cycles, like 20 minutes at 30 PSI. Exceeding this burns out the motor, let it cool for at least as long as it ran.
• If using a puncture sealant kit, you have 15 minutes max to reach the minimum seal pressure (typically 26 PSI). Failure means the tire cannot be repaired with the kit.
• Always use a twist-on or lock-on chuck. A clip-on chuck will blow off a tire at higher pressures, potentially causing injury.

Before You Start: The Non-Negotiables

Before you start: A portable air compressor gets dangerously hot during use. Never touch the motor housing or air hose near the compressor head. The power cord must be fully uncoiled to prevent overheating, and the unit must sit upright on a solid surface, not in dirt or sand, to avoid sucking debris into the motor.

This isn’t shop equipment. A portable air compressor for cars lives on a different set of rules. Ignoring them doesn’t mean a slower fill. It means a dead compressor, a blown vehicle fuse, or a tire that blows a chuck across your garage.

First, know your power source. Every manual for units like the VIAIR EVC85P states the engine must be running. Why? These compressors draw 15 to 20 amps. A car battery at rest can’t sustain that without a serious voltage drop, which overheats the compressor’s motor and blows the vehicle’s 15-amp accessory socket fuse. You get about 90 seconds of runtime with the engine off before problems start.

Second, respect the environment. The IP53 rating on many models means they’re dust and splash resistant, not waterproof or dustproof. Operating one in loose dirt or mud lets fine particles get sucked into the air intake, scoring the cylinder wall. The damage is internal and permanent.

The 7-Step Process for Any 12V Compressor

The steps are universal, but the details inside them determine success or a melted power plug.

1. Park on solid ground and start the engine. Engage the parking brake. This provides stable power and prevents the vehicle from rolling.
2. Uncoil the power cord and hose completely. A coiled cord traps heat. This is the number one cause of power-cord failure and a primary warning in every manual.
3. Plug the compressor into the 12V accessory socket. Ensure the compressor’s switch is in the OFF position before connecting.
4. Set your target pressure. On digital units like the EVC85P, use the +/- buttons. On analog units, note the PSI you need. Always use your vehicle’s door jamb sticker pressure, not the tire’s sidewall max.
5. Attach the air chuck to the valve stem. Use a twist-on or lock-on chuck. Push it straight on, then twist or lock it down until you hear no hissing. A clip-on chuck is for bicycle tires, not car tires.
6. Turn the compressor ON and inflate. Monitor the gauge but don’t trust it yet (see next section). Listen for the motor strain, it will change pitch as pressure builds.
7. Stop, check, and adjust. Turn the compressor OFF. Wait three seconds for the gauge to settle. This is your true tire pressure. If under, repeat steps 6 and 7. If over, use the chuck’s bleed valve or a separate gauge to release air.

Skipping step 7 is where most people overinflate. They watch the gauge climb to 35 PSI while pumping, stop, and think they’re done. The actual pressure might be 30 PSI. So they pump more, overshoot, and end up bleeding air back out.

Step	Critical Action	What Happens If You Skip It
Engine Running	Provides stable ~14V power	Drains battery, blows 15A fuse, overheats compressor motor.
Uncoil Cords	Prevents heat buildup in wires	Cord insulation melts, causing short circuit or fire risk.
Twist-On Chuck	Creates a sealed, mechanical lock	Chuck blows off valve at 40+ PSI, becoming a dangerous projectile.
Stop to Check Gauge	Allows accurate pressure reading	Leads to consistent over- or under-inflation by 5-10 PSI.

Why Does the Gauge Lie While Inflating?

Please Note: During inflation, due to air velocity, pressure gauge cannot provide accurate pressure readings, to check and verify the actual tire pressure the compressor must be in OFF position. – VIAIR 88P SXS User Manual

This is physics. When air moves quickly through the hose and chuck, it creates turbulence and a pressure drop across the gauge’s port.The gauge reads the dynamic, moving pressure in the hose, not the static, settled pressure in the tire.

Think of it like measuring water pressure while the faucet is wide open. Your reading is useless.

The VIAIR 450P manual states it plainly: release the trigger and let the gauge settle. That’s your true tire pressure. Relying on the moving number guarantees you’ll never hit your target PSI. This quirk is the single biggest reason DIYers struggle with air compressor pressure settings.

The fix is rhythm: Pump for 30 seconds. Stop. Let the gauge settle for 3 seconds. Note the pressure. Repeat. It’s slower but accurate. For a low tire needing 10 PSI, this might take two cycles. For a full fill from flat, it could take six or seven. That leads directly to the next limit.

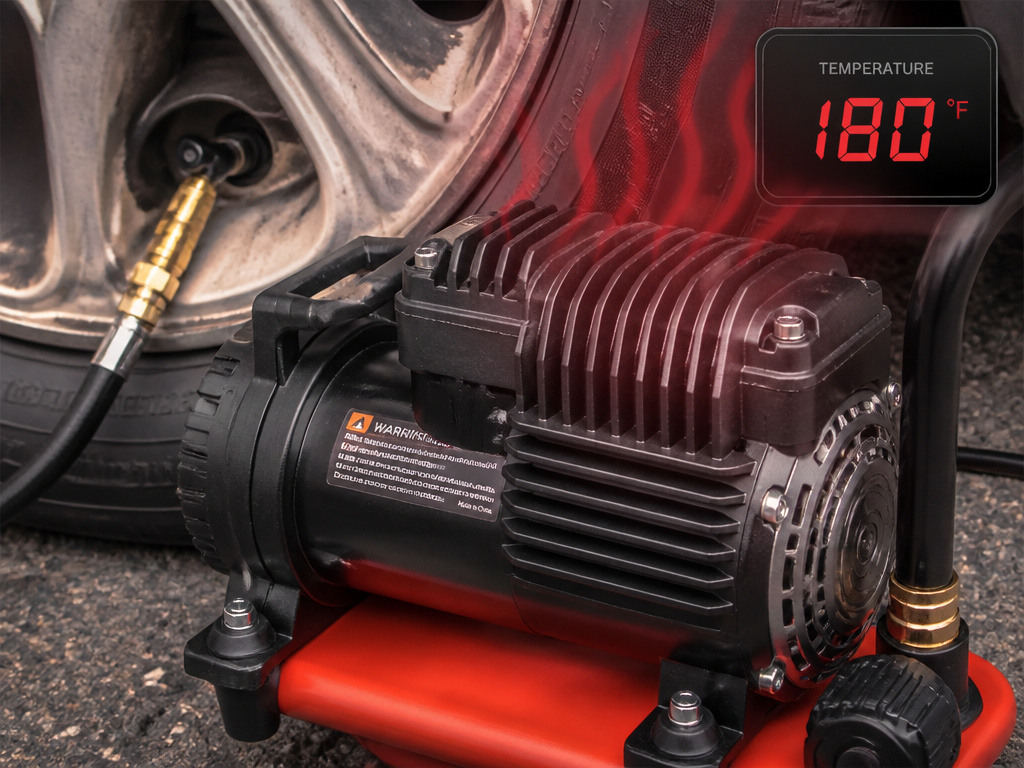

Your Compressor’s Hidden Limit: The Duty Cycle

You can’t just run a portable compressor until the tire is full. It will overheat and shut down, or worse, keep running and destroy itself.

Every quality compressor lists a “duty cycle” in its specs. This is the maximum continuous run time at a specific pressure and ambient temperature (usually 72°F).

• VIAIR EVC85P: 20 minutes @ 30 PSI
• VIAIR 88P SXS: 25 minutes @ 30 PSI
• VIAIR 450P: ~1 hour @ 100 PSI (continuous use)

The duty cycle is a red line. Hitting it means the motor is at its thermal limit.The best practice is to run the compressor for no more than 50-75% of its duty cycle, then let it cool down completely. For the EVC85P, that’s 10-15 minutes of run time, followed by a 15-minute cool-down period.

Where this goes sideways: Running a compressor back-to-back for two low tires on a hot day. The first tire uses 12 minutes of runtime. The internal temperature is already high. Starting the second tire immediately pushes the motor past its design limit. You’ll smell hot electronics, and the thermal protector will trip. If it doesn’t, the motor windings degrade with each overheating event.

How long does it take to fill a tire? A compressor’s flow rate (CFM) gives a clue. The EVC85P flows 1.77 CFM at 0 PSI. That flow drops as pressure rises. Filling a standard car tire from 20 to 35 PSI might take 3-5 minutes. A larger truck tire from 15 to 50 PSI could take 8-12 minutes, edging you toward the duty cycle limit. This is why understanding how air compressors work and their limits is crucial before you buy.

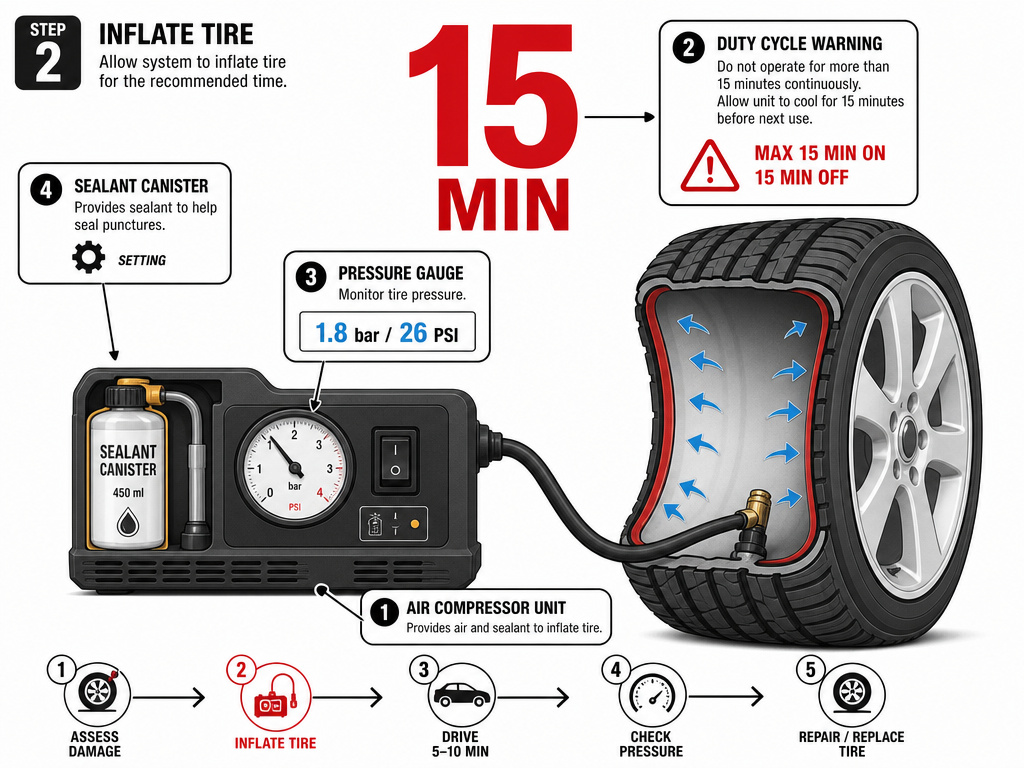

The Emergency Repair Kit Countdown

This is the non-commodity, manufacturer-stated rule most guides miss.

The Dacia Tyre Inflation Kit manual is explicit: after injecting sealant and starting inflation, you have a maximum of 15 minutes to achieve a pressure of 1.8 bar (about 26 PSI). If you cannot reach that minimum pressure within that time, “repair is impossible. Do not drive the vehicle.”

The part nobody mentions: That 15-minute timer includes the compressor’s duty cycle. If your portable compressor can only run for 10 minutes before needing a cool-down, you’ve just lost the repair. You cannot stop and wait for the compressor to cool. The sealant is setting, and the clock is ticking.

This turns a simple inflation task into a high-stakes logistics problem. You must use a compressor capable of running for the full 15 minutes at the required pressure, or the entire kit is useless. Most compact “cigarette lighter” compressors cannot do this. You need a unit with a higher duty cycle, like the VIAIR 450P, or a separate tire inflator designed for continuous use.

Portable Compressor vs. Shop Compressor vs. Tire Inflator

Not all air sources are equal. Using the wrong one leads to frustration or failure.

Tool Type	Best For	Key Limitation	Real-World Example
12V Portable Compressor (VIAIR EVC85P)	Emergency fills, topping off tires, light DIY.	Strict duty cycle (20-25 mins). Cannot run air tools.	Topping off four car tires monthly. Filling one flat tire on the roadside.
Stationary Shop Compressor (60-Gallon Tank)	Running air tools, painting, frequent high-volume inflation.	Not portable. Requires 110V/220V power.	Inflating all four truck tires from 20 to 60 PSI twice a week. Running an impact wrench.
Dedicated Tire Inflator	Fast, set-and-forget tire inflation only.	Single-purpose. Lower maximum pressure (often ~70 PSI).	Quick top-ups at a race track or for a fleet of vehicles.

For 95% of car owners, a robust portable air compressor like the VIAIR 88P SXS is the answer. It balances performance, portability, and cost. A shop compressor is overkill unless you run air tools. A dedicated inflator is faster but lacks versatility for sports balls or air mattresses. Our air compressor vs inflator guide dives deeper into this choice.

The choice also dictates your air hose needs. Portable units come with a short, integrated hose. For a shop compressor, you need to know how to attach hose to air compressor correctly with a quick-connect fitting to avoid leaks at high pressure.

Troubleshooting: When the Air Won’t Flow

Your compressor is on. The gauge reads zero. No air is coming out. Here’s the diagnostic tree.

• Check the fuse. The 15A fuse in the compressor’s power plug is the first point of failure. Replace it with an identical 15A fuse, never higher.
• Listen to the motor. Is it humming but not pumping? The internal check valve might be stuck. A sharp tap on the compressor head can sometimes free it. If it’s silent, the thermal protector may have tripped. Let it cool for 30 minutes.
• Inspect the chuck. Is it fully locked onto the valve stem? A hiss means no seal. Depress the valve core inside the stem with a key. If air comes out, the valve is good. If not, the valve core is clogged or broken.
• Feel the hose. Is it hot near the compressor? The hose might be kinked or blocked. Disconnect it from the chuck and turn the compressor on briefly (point it away from you). If air flows, the problem is downstream at the chuck or valve.

A common issue is insufficient pressure despite the compressor running. This is often a clogged air filter on the compressor’s intake. On models like the 450P, the filter is a serviceable part. A dirty filter drastically cuts flow rate (CFM), making inflation take twice as long. Regular cleaning is part of basic compressor maintenance.

If you finish and find moisture spraying from the tire valve, that’s water from the compressor’s tank. This is why draining your air compressor tank after use is mandatory in humid climates. That moisture can freeze in your tire’s valve in winter or promote corrosion.

Frequently Asked Questions

Can I use an air compressor with the car off?

No. The compressor draws more current than the accessory socket can provide without the alternator running. You risk a dead battery and will almost certainly blow a fuse. The engine must be running.

Why does my compressor keep shutting off after a minute?

It’s overheating. You’ve exceeded its duty cycle or are running it in a hot environment. Let it cool down completely, at least as long as you ran it. Ensure the power cord is fully uncoiled and the unit is sitting in open air, not on hot asphalt.

What’s the difference between PSI and CFM?

PSI (pounds per square inch) is the pressure the compressor can create. CFM (cubic feet per minute) is the volume of air it can move. You need enough PSI to reach your tire’s pressure (e.g., 35 PSI). You need enough CFM to do it in a reasonable time. A low CFM means a long, hot wait.

Can I inflate a completely flat tire?

Yes, but it’s the hardest test for a portable compressor. It will run for most of its duty cycle and get very hot. Ensure you have a proper seal on the valve stem, as a slow leak will make the job impossible. If the tire has a large puncture, the compressor cannot overcome the leak.

How do I know what size air compressor I need for my tires?

For passenger car and light truck tires, any quality 12V portable compressor with a maximum working pressure of at least 100 PSI is sufficient. The key spec is duty cycle. If you have large truck tires (LT-metric) or inflate frequently, look for a higher-duty-cycle model like the VIAIR 450P. Our guide on choosing an air compressor breaks down the math.

The Bottom Line

Using an air compressor for tires is about respecting three hard limits: the 15-minute repair window, your unit’s duty cycle, and the gauge’s need for stillness. The tool is simple. The discipline isn’t.

Forget the clip-on chuck. Use a twist-on. Ignore the dancing gauge number. Stop and read. And if you’re sealing a puncture, start the timer the moment you plug the compressor in. That’s the difference between a fixed tire and a call for a tow.

Keep the power cord straight. Let the motor cool. And always, always run your engine. Do that, and a decent portable air compressor will handle 99% of your tire inflation needs for years.
