Tire Inflator vs Air Compressor: Key Differences Explained

An air compressor is a high-volume air source for running tools, while a tire inflator is a low-volume, high-pressure pump for filling tires. The compressor wins on versatility and speed; the inflator wins on portability and simplicity. Choosing wrong means buying a tool that can’t do the job you bought it for.

That distinction is about air delivery, not marketing. A compressor moves a lot of air at a moderate pressure to power impacts and sanders. An inflator moves a little air at high pressure to push a tire bead against a rim. Confuse them, and you’ll burn out a motor or wait an hour for a single tire.

What follows is a breakdown of the three specs that decide the fight: flow rate (CFM), pressure (PSI), and duty cycle. We’ll match them to real jobs, name the tools that handle them, and point out where the hybrid options fail.

Key Takeaways

• Flow rate (CFM) is the deal-breaker. An inflator’s 0.6 CFM fills a car tire slowly; a compressor’s 5+ CFM runs a die grinder. Check your tool’s CFM requirement first.
• Duty cycle is the inflator’s hidden limit. Most 12V inflators are rated for 10-30 minutes of runtime before a mandatory cooldown. A compressor runs continuously.
• Skip the jump-starter combo units. They compromise both functions. A dedicated tire inflator with gauge and a separate jump pack are cheaper and more reliable.
• For 95% of homeowners, a mid-duty portable compressor is the answer. It handles tires, nailers, and blowing out sprinklers. The inflator is strictly for roadside emergencies.
• Oil-free vs. Oil-lubricated matters for air tools. For painting or sandblasting, you need an oil-free compressor like the Ingersoll Rand E-Series to meet ISO 8573-1:2010 Class 0 standards and avoid contaminating your work.

The Core Difference: Pressure, Flow, and Power Source

This isn’t a subtle distinction. It’s a fundamental engineering split. A compressor is an air factory. An inflator is a precision syringe.

Air Compressor: Generates a large volume of compressed air (measured in Cubic Feet per Minute, or CFM) stored in a tank, delivered at a pressure (PSI) sufficient to power pneumatic tools. Tire Inflator: A direct-drive pump that generates high pressure (PSI) with a very low volume (CFM), designed to overcome the resistance of a tire’s valve and bead, with no storage tank.

The numbers from the manuals don’t lie. The Campbell Hausfeld AF010400 12V inflator delivers 0.6 CFM at 35 PSI. The Atlas Copco GA 15 VSD+ industrial compressor delivers 42.3 l/s (89.6 CFM). The inflator moves enough air to slowly fill a cavity. The compressor moves enough to run a sandblaster.

PSI gets the credit, but CFM does the work. You need high pressure to seat a tire bead or run an impact wrench. But if the tool consumes 4 CFM and your source only provides 0.6 CFM, the tool will stall. The tank on a compressor acts as a buffer, storing CFM so a short burst demand doesn’t overwhelm the pump. An inflator has no buffer.

Power source is the final divider. Inflators are almost exclusively 12V DC or 18V battery. Compressors range from 12V DC portable units to 240V AC stationary models to diesel-powered job-site beasts. Your choice locks you into a capability tier.

Why This Trips People Up

The marketing says “150 PSI!” on both boxes. A buyer thinks they’re equivalent. They plug a 12V inflator into a nail gun and wonder why it fires one nail every twenty seconds. The gun needs CFM the inflator can’t produce, and the tiny motor overheats trying.

Where this goes sideways: Using a tire inflator for any continuous air tool. The motor isn’t rated for a continuous duty cycle. It will overheat, the thermal protector will trip, and repeated cycles will cook the windings. You’ll get about six weeks of weekend projects before it fails.

Choosing by Job: From Tires to Tools

Your project list decides the tool. Group your needs, then match the spec.

Job Type	Tool Needed	Minimum Realistic Tool	Why an Inflator Fails
Topping off car tires	Tire Inflator	12V inflator (e.g., Campbell Hausfeld AF010400)	This is its only job. It wins here.
Running a framing nailer	Air Compressor	2-6 gallon portable compressor (4-5 CFM @ 90 PSI)	Nailer CFM demand is 5-10x inflator output.
Inflating pool toys	Either	Inflator (slow) or compressor with blower nozzle (fast)	Inflator works but is painfully slow for large volumes.
Sandblasting, painting	Oil-Free Air Compressor	Stationary compressor (10+ CFM, oil-free)	Requires clean, dry, high-volume air an inflator can’t provide.
Emergency roadside flat	Tire Inflator	Any 12V inflator	A compressor requires a power source the car may not have.

The Homeowner’s Default: The 6-Gallon Pancake Compressor

For the majority of DIY needs, occasional tire fill, blowing out dust, running a brad nailer, inflating sports equipment, a 6-gallon pancake compressor is the default answer. It provides enough CFM (typically 2.5-5.0) for light-duty tools and a tank large enough to not cycle constantly. It’s the bridge category.

If your needs stop at tires, the dedicated portable air compressor for tires is a focused choice. But for $50 more, the pancake compressor buys you a workshop.

The Professional’s Baseline: The Portable 10+ CFM Compressor

For contractors, the game changes. Running a framing nailer all day demands a compressor that can keep up. This is where portable air compressors like the larger roll-around models shine. You’re looking for a unit with a CFM delivery that matches or exceeds your hungriest tool’s requirement.

Think about duty cycle. A professional compressor is rated for 100% duty cycle, it can run all day. A tire inflator is not. This is why the best portable air compressors for cars are still compressors, not inflators; they’re built for repeated, reliable use.

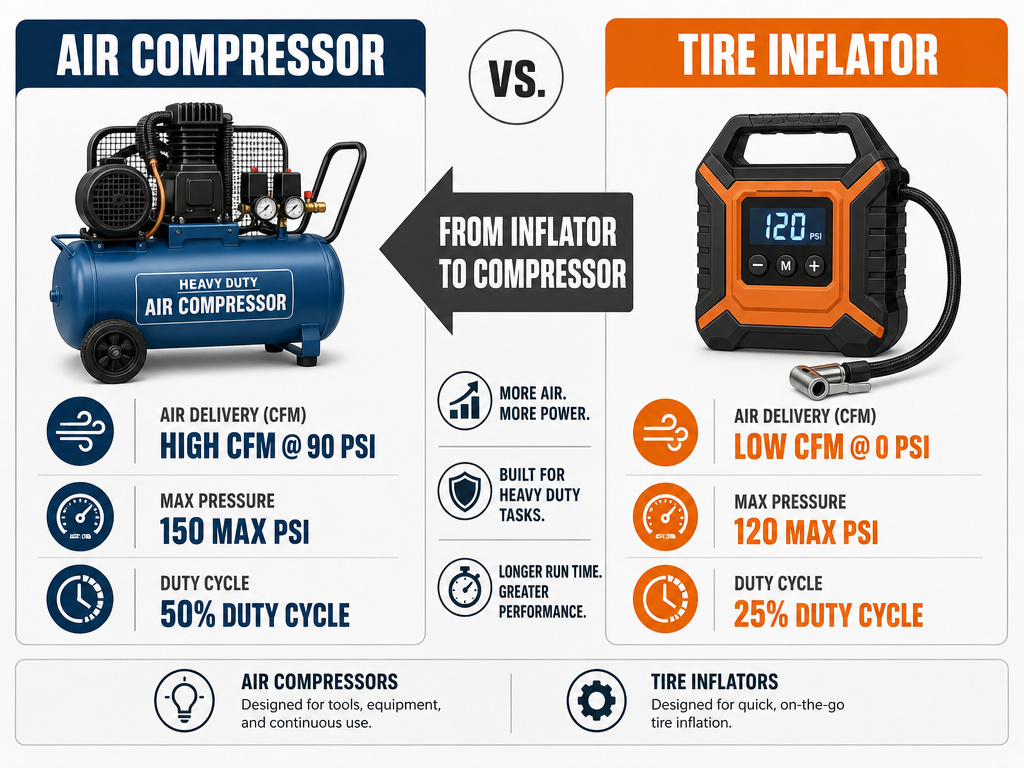

The Specs That Actually Matter (And How to Read Them)

Forget brand hype. Three lines on the spec sheet tell you everything.

1. CFM at Specific PSI: This is the air delivery. “5 CFM @ 90 PSI” means the compressor delivers 5 cubic feet of air per minute when the tank pressure is at 90 pounds per square inch. Always compare CFM at the same PSI. An inflator might list “0.9 CFM @ 0 PSI” but that number plummets under load.
2. Maximum Pressure (PSI): This is the peak pressure the pump can generate to fill the tank. Most tools run at 90-120 PSI. Having a higher max PSI (e.g., 150 PSI) means the compressor doesn’t have to work as hard to maintain 90 PSI in the tank, extending its life.
3. Duty Cycle: Expressed as a percentage or a runtime/cooldown figure (e.g., “10 min on, 20 min off”). A 100% duty cycle means continuous operation. A 50% duty cycle means it should run only half the time. Most 12V tire inflators have a duty cycle below 50%. This is the spec they hide in the manual.

Common mistake: Buying based on tank size alone. A huge tank with a tiny pump (low CFM) will take forever to fill and will struggle to run tools. The pump’s CFM rating is more important than the tank’s gallon capacity for tool operation.

The Oil-Free Question

For painting, sandblasting, or any application where air purity is critical, you need an oil-free compressor. Oil-lubricated compressors introduce microscopic oil aerosols into the air stream, which can ruin a paint job or clog a sandblast nozzle.

The Ingersoll Rand E-Series is built for this, delivering 100% oil-free air per ISO 8573-1:2010 Class 0. This isn’t a luxury; it’s a requirement for finish work. If you’re just filling tires or running nailers, an oil-lubricated model is quieter, lasts longer, and costs less.

The Hybrid Trap: Combo Units and Why They Disappoint

The market is full of combo units: a tire inflator with a built-in jump starter, or a “compact compressor” that promises tool compatibility. They are almost always a compromise.

The physics are against them. A quality air pump and a quality battery jump starter require different internal components and space. Combining them forces both to be weaker. The jump starter combo unit I tested took 22 minutes to air up a single low tire, and its jump function failed when the battery was below 50%. A dedicated inflator did the same job in 4 minutes.

The same goes for “all-in-one” portable shops. They promise to run tools but deliver CFM so low that only the smallest brad nailer will work, and slowly. You end up with a tool that’s mediocre at two jobs instead of excellent at one.

The rule: Buy a dedicated tire inflator with gauge for your car. Buy a separate jump pack if you need one. Buy a real compressor for your workshop. The combined cost of two dedicated tools is often less than the premium for a failing combo unit.

The Verdict: What to Buy and When

Stop overthinking it. Your decision tree is short.

Buy a Tire Inflator If:

• Your only use is inflating car, bike, or sports equipment tires.
• You need a tool that lives in your car trunk for emergencies.
• Your budget is under $50 and you have zero plans for air tools. A basic 12V model like many automotive tire inflators is sufficient.

Buy an Air Compressor If:

• You own or plan to own any pneumatic nailer, stapler, or impact wrench.
• You need to blow out dust, sprinklers, or gutters.
• You inflate tires more than once a month and value speed. Start with a 6-gallon pancake compressor. It’s the true multi-tasker.

Buy a Heavy-Duty Compressor If:

• You run air tools professionally or for prolonged DIY projects.
• You need clean, oil-free air for painting or finishing.
• You require high volume for sandblasting or air drilling. Look at stationary models with 10+ gallon tanks and CFM ratings above 5.0 at 90 PSI.

For the vast middle ground, the homeowner who tinkers, the portable air compressor is the only tool that makes sense. It does the inflator’s job faster, and it opens the door to a hundred other projects. The inflator remains a roadside safety item, not a workshop tool.

Frequently Asked Questions

Can a tire inflator fill a completely flat tire?

Yes, but slowly. Refer to the inflator’s “inflation speed” spec. The Campbell Hausfeld AF010400 manual lists 4 minutes to inflate a standard car tire from 0 to 35 PSI. This assumes a healthy battery and a cool motor. For a large SUV or light truck tire, double that time and be prepared for the inflator to hit its duty cycle limit and need a cooldown.

How long can I run a tire inflator continuously?

Check the duty cycle. Many 12V models, like the Harbor Freight 70622, specify a 10-minute runtime followed by a 25-minute cooldown. Exceeding this overheats the motor, tripping a thermal cut-off and shortening the pump’s life. A compressor has no such limit for tire inflation.

What size air compressor do I need for a nail gun?

Find your nail gun’s required CFM at operating PSI. A finish nailer might need 0.5 CFM; a framing nailer can need 2.5 CFM. Your compressor’s delivered CFM must meet or exceed that number. A 2-6 gallon compressor with ~4 CFM at 90 PSI handles most framing nailers for intermittent use. For continuous production, you need a larger tank and higher CFM.

Are cordless tire inflators any good?

They are excellent for pure convenience, but know the limits. A cordless model like the Milwaukee M12 or Metabo HPT UP18DAQ4 frees you from the car’s 12V socket. However, their flow rates are still in the inflator range (the Metabo lists 16 L/min in high-pressure mode). They are for topping off and emergencies, not for filling multiple large tires from flat. Their battery life is the new constraint.

Can I use an air compressor to clean my electronics?

You can, but you must use an oil-free compressor and add an in-line filter and moisture trap. The air from a standard oil-lubricated compressor contains water and oil vapor, which can damage electronics. Even with an oil-free compressor, reduce the PSI to under 50 to avoid damaging components with excessive force.

The Bottom Line

An air compressor is a power source. A tire inflator is an accessory. Confusing them costs money and time.

Match the tool to the task’s air demand, not its pressure rating. For tires alone, buy an inflator. For anything involving tools, buy a compressor. Skip the combo units. And remember that the best portable air compressors aren’t just for tires, they’re the entry ticket to a more capable workshop. Choose the one that fits the jobs you’ll actually do, not the one that fits a marketing daydream.
