How to Use a Husky Air Compressor: Setup, Operation & Safety

To use a Husky air compressor, follow this sequence every time: plug in, close the drain valve, turn the regulator to zero, then switch it on. Let the tank fill, set your tool pressure on the regulator, and connect your hose. Shut down by disconnecting tools, bleeding air, switching off, unplugging, and draining the tank. Missing the daily drain rusts the tank from the inside within a season.

The sequence matters because it prevents the motor from starting under load and keeps moisture out of your air lines. Get it backward, and you risk blowing a shop fuse on startup or spraying water into a paint gun.

What follows: the exact startup/shutdown checklist for pancake, hotdog, and silent models, the extension cord math that keeps the motor alive, the one-minute pressure relief valve test, and what happens when you pair a 5 CFM tool with a 2.8 CFM compressor.

Key Takeaways

• Always start with a closed drain valve and the air pressure regulator turned fully counterclockwise to zero. Starting with the regulator set high makes the motor struggle against backpressure.
• Drain the tank after every use, without exception. Humidity condenses inside the steel tank daily; leaving it wet starts pitting corrosion that voids the warranty and weakens the tank.
• Match your tool’s air demand (CFM) to your compressor’s output. A framing nailer needing 2.5 CFM at 90 PSI works on a Husky 6-Gallon; a die grinder needing 5 CFM will stall it every 30 seconds.
• Test the pressure relief valve monthly by pulling its ring with the tank pressurized. It should blast air and reset between 40-100 PSI. If it sticks open or doesn’t release, stop using the compressor immediately.
• Use the correct extension cord gauge. For the 11.8-amp Husky 6-Gallon, a 50-foot cord must be 16-gauge; a 100-foot cord must be 12-gauge. A cord that’s too thin overheats and can damage the motor.

The Non-Negotiable 4-Step Startup Sequence

Head design changes the process. For a bump-feed head, you wind against the arrow. For a fixed-line head, you thread pre-cut lengths. The universal mistake is forcing the wrong line diameter, 0.095 line in a head rated for 0.080 jams the feed mechanism on the third bump.

You must close the drain valve before every startup. The valve is typically a small brass knob on the bottom of the tank. Turn it clockwise until snug. An open drain valve lets all the pressurized air escape as fast as the pump can make it, so the motor runs continuously and overheats within minutes. You’ll hear a loud hissing instead of the pump cycling on and off.

Next, connect your air hose to the quick coupler on the regulator outlet. Push the hose’s plug end straight in until it clicks. Then set the regulator. Turn the knob on the regulator, usually the leftmost gauge’s control, fully counterclockwise. This closes the valve to the hose and sets the output pressure to zero.

Now plug the compressor into a grounded 120V outlet. Flip the ON/OFF switch to the “I” or “ON” position. The motor will kick on, and the pump will start filling the tank. Watch the right-hand tank pressure gauge. The motor will automatically shut off when the tank reaches the “cut-out” pressure, which is 150 PSI max on the 6-gallon pancake model.

The correct startup order prevents the electric motor from attempting to start against backpressure, which trips thermal overload protectors and can blow a 15-amp house circuit. Always verify the drain valve is closed and the regulator is at zero before switching on.

Once the tank is full, turn the regulator knob clockwise to increase the output pressure to your tool’s required PSI. Watch the left-hand regulator gauge. Attach your tool to the other end of the hose. You’re ready to work.

How to Adjust Air Pressure for Your Tool

The regulator is your control dial. The left gauge shows the pressure going to your tool; the right gauge shows the pressure stored in the tank. They are not the same number. You can run a brad nailer at 70 PSI while the tank holds 120 PSI.

Find your tool’s required PSI in its manual. For a finish nailer, it’s often 70-100 PSI. For a tire, check the sidewall, usually 32-35 PSI for a car. Turn the regulator knob clockwise to raise the pressure, counterclockwise to lower it. Make small adjustments while the tool is connected but not firing.

Where this goes sideways: Setting the pressure with the tool disconnected. The moment you pull the trigger, the pressure will drop and the tool will run weakly. Always set the pressure with the tool connected and a brief test trigger pull. The gauge will dip and then settle at your set point.

Common Tool	Typical PSI Range	Critical Note
Brad Nailer (18-gauge)	70-90 PSI	Higher pressure can split trim; start low.
Framing Nailer	90-120 PSI	Needs high volume; ensure your compressor’s CFM at 90 PSI meets demand.
Tire Inflation	32-35 PSI (car)	Use an inline tire gauge for accuracy; the regulator gauge is less precise.
Dust Blower	40-60 PSI	Lower pressure saves air and is still effective for clearing sawdust.
Spray Gun (HVLP)	25-40 PSI	Requires a separate filter/regulator at the gun to prevent moisture in the paint.

The regulator can only reduce tank pressure, not increase it. If your tool needs 100 PSI and your tank only has 80 PSI left, the regulator cannot help. Wait for the pump to cycle back on and refill the tank.

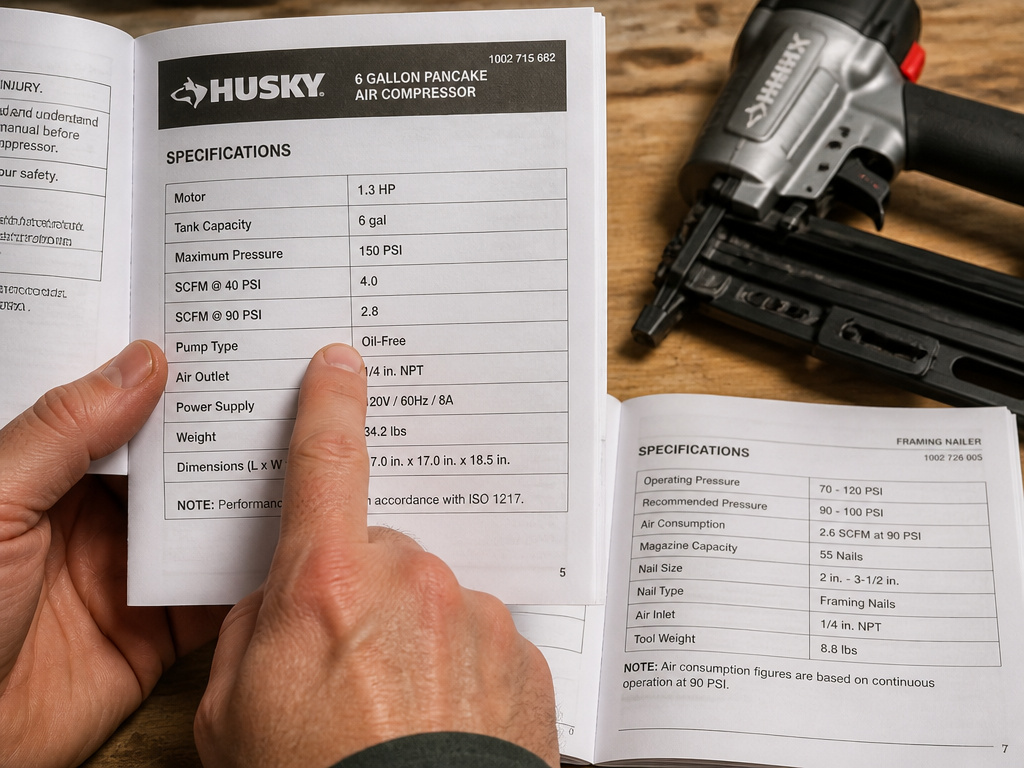

Matching Your Compressor to the Job: The CFM Check

SCFM. Standard Cubic Feet per Minute, is the volume of air the compressor can deliver. PSI is the pressure. Your tool consumes a specific CFM at a specific PSI. This is the make-or-break spec most weekend projects get wrong.

Check your tool’s manual for “CFM at [PSI]”. Then check your compressor’s manual. For the Husky 6-Gallon Pancake (Model #02106415), the air delivery is 2.8 SCFM at 90 PSI. A typical framing nailer uses about 2.5 CFM at 90 PSI. That’s a tight match, but it works. The compressor will run almost continuously to keep up.

Now try a die grinder or a small sandblaster. Those can demand 5-8 CFM. The 6-gallon Husky cannot supply that. The tool will run for 10 seconds, drain the tank, and then you’ll wait two minutes for the pump to refill it. The motor will overheat from the constant cycling.

Common mistake: Buying a compressor based only on tank size. A 6-gallon tank is convenient, but the pump’s CFM output determines what tools you can run continuously. A 27-gallon silent model delivers 5.0 SCFM at 90 PSI, which handles a much wider set of tools.

For intermittent tools like nailers and staplers, a pancake compressor is perfect. For continuous-use tools like sanders, grinders, or sandblasters, you need a larger stationary compressor with a higher CFM rating. Our guide on choosing an air compressor breaks down the math.

The Correct Shutdown and Daily Drainage Ritual

Shutdown is a safety routine. First, disconnect your air tool from the hose. Pull back the sleeve on the quick coupler and pull the hose plug out. This releases any pressure trapped in the hose.

Next, bleed the air from the hose. Point the coupler in a safe direction and press the tip to release any remaining pressure. You’ll hear a hiss. Now turn the ON/OFF switch to the “O” or “OFF” position. Unplug the power cord from the wall.

You must drain the tank after every use. Water is the enemy. As compressed air cools inside the tank, moisture from the atmosphere condenses into liquid. This water sits at the bottom of the steel tank. Leave it there, and rust starts within weeks. A rusted tank is a weakened tank, and it is not covered by the Husky warranty.

Never block a wool-acrylic blend above 60°C. By 70°C the acrylic deforms permanently and the garment will not recover its shape, even after re-blocking.

Here’s the drill. With the compressor off and unplugged, pull the ring on the pressure relief valve. Hold it open until both pressure gauges read 0 PSI. This depressurizes the tank so you can open the drain valve safely.

Position a shallow container under the drain valve. Turn the valve counterclockwise to open it fully. Tilt the compressor toward the valve. You’ll hear a rush of air, followed by water trickling out. Keep it tilted until only a dry hiss of air remains. Close the valve tightly.

If you skip this, the water mixes with oil from the pump (on oiled models) and forms a corrosive sludge. By next season, the tank’s interior is pitted, and the safety margin is gone. Our dedicated article on draining an air compressor covers long-term storage tips.

Power and Extension Cord Requirements

Husky compressors are 120V, AC-only tools. The Husky 6-Gallon Pancake draws 11.8 Amps. That’s a heavy load for a standard 15-amp household circuit. If you plug in a work light on the same circuit, you risk tripping the breaker.

The manual is strict about extension cords. A cord that’s too long or too thin causes voltage drop. The motor struggles, overheats, and the thermal overload switch will shut it down. In a worst-case scenario, you damage the motor windings.

Use this table from the Husky 3-Gallon Hotdog manual as your guide. The principle is the same for all models: match the cord’s wire gauge (AWG) to the compressor’s amperage and the cord’s length.

Compressor Amperage	Cord Length: 25 ft	Cord Length: 50 ft	Cord Length: 100 ft
0–2.0 Amps	16 AWG	16 AWG	16 AWG
2.1–3.4 Amps	16 AWG	16 AWG	16 AWG
3.5–5.0 Amps	16 AWG	14 AWG	12 AWG
5.1–7.0 Amps	14 AWG	14 AWG	10 AWG
7.1–12.0 Amps	14 AWG	12 AWG	10 AWG
12.1–16.0 Amps	14 AWG	12 AWG	Do Not Use

For the 11.8-amp pancake compressor, a 50-foot cord must be 12-gauge. A 100-foot cord must be 10-gauge. Never use a 16-gauge cord from a household lamp, it will get hot to the touch within minutes. The manual also advises using a longer air hose instead of a long extension cord whenever possible.

Monthly Safety Check: The Pressure Relief Valve

This small valve with a pull ring on the tank is your last line of defense. Its job is to open automatically if the pressure switch fails and tank pressure exceeds the maximum safe limit (e.g., 150 PSI). If it’s clogged or stuck, the tank could theoretically rupture, a catastrophic failure.

Test it every month. With the tank pressurized (above 40 PSI is fine), pull the ring straight out. You should feel a strong blast of air escaping from the valve. Keep pulling. As the tank pressure drops, the valve should snap closed and stop blasting air between 40-100 PSI. Release the ring.

If the valve sticks open and continues blasting air after you let go, the compressor is unsafe. Unplug it immediately and replace the valve before using it again. If the valve doesn’t release air when you pull, or if it leaks air constantly, it’s also faulty and must be replaced.

I won’t recommend skipping this test. The valve is a brass and spring mechanism that can seize from corrosion or paint overspray. Two minutes a month is cheap insurance.

This test is part of a broader troubleshooting a compressor routine that includes checking for air leaks and ensuring the pump cycles correctly.

Connecting Hoses and Accessories

The quick coupler is a standard 1/4-inch industrial interchange fitting. To connect, push the male plug end of your hose straight into the coupler until it clicks. To disconnect, pull back the knurled sleeve on the coupler and pull the hose out.

Use Teflon tape (plumber’s tape) on any threaded connection that leaks. Wrap the tape clockwise around the male threads two or three times, then screw the fitting together. Hand-tighten, then use a wrench for a final quarter-turn. Overtightening cracks the aluminum fittings.

For painting, you need more than just a hose. Moisture in the air line will ruin a paint job. Install a coalescing filter and a separate regulator at the spray gun. The filter removes water and oil aerosols; the fine-adjust regulator lets you dial in the exact PSI for your material. Our guide on using a spray gun covers the setup.

For inflating tires, use an inline tire chuck with a built-in gauge. The regulator gauge on the compressor isn’t accurate enough for tire pressure. The chuck screws onto the valve stem and locks, allowing you to inflate hands-free.

Before You Go

Using a Husky air compressor boils down to four habits. Start with a closed drain and a zeroed regulator. Match your tool’s CFM demand to your pump’s output. Drain the tank after every single use. Test the pressure relief valve monthly.

For small jobs, the Husky 6-gallon pancake is the default. It’s light, affordable, and powers nailers all day. For quiet operation in a garage, the 27-gallon silent model is worth the step up. For quick tire top-offs, a dedicated tire inflator is simpler.

Keep the manual. The specs for your model. SCFM, amps, drain valve location, are your ground truth. Everything else is just keeping the water out and the air flowing.

Frequently Asked Questions

What’s the first thing I should do with a new Husky air compressor?

Unbox it, ensure all parts are present, and place it on a level, dry surface. Before first use, open the drain valve briefly to check for any manufacturing debris. Then follow the standard startup procedure: close drain valve, connect hose, zero regulator, plug in, and switch on. Let it run through a full cycle to 150 PSI and shut off. This ensures the pressure switch is working.

Why does my Husky compressor keep tripping the circuit breaker?

The most common cause is using an extension cord that’s too thin or too long for the amperage draw. Refer to the extension cord table in this article. Second, ensure nothing else is running on the same 15-amp circuit. Third, the motor may be overheating from continuous use beyond its duty cycle, let it cool for an hour.

Can I leave air in the tank when storing the compressor?

For short-term storage (a few days), it’s fine. For long-term storage (a month or more), you should drain the tank completely of both air and moisture and leave the drain valve open. This prevents internal condensation from forming and sitting against the steel during temperature swings.

How do I know if my compressor is big enough for my paint sprayer?

Check the spray gun’s required CFM at the PSI you plan to use. Compare that to your compressor’s SCFM rating at the same PSI. The compressor’s output must meet or exceed the gun’s demand for continuous spraying. If the numbers are close, you’ll need a larger tank (like the 27-gallon model) to provide a buffer so the pump isn’t cycling constantly.

Is the air from a Husky compressor safe to breathe?

No. The manual explicitly states: “Compressor does not supply breathable air.” The air intake pulls in ambient workshop air, which contains dust, oil aerosols, and other contaminants. The compressor does not filter these out. Never use air from a standard shop compressor for breathing apparatus, sandblasting helmets, or inflating air mattresses for sleeping.
