Master How to Use a Spray Gun with an Air Compressor Easily

To use a spray gun with an air compressor, match three manufacturer specs: air pressure at the gun inlet (typically 7-10 PSI for low-viscosity materials), fluid pressure (not exceeding the gun’s maximum, like 1500 PSI for a Graco G15), and hose internal diameter (3/16 inch or 5mm minimum). Connect a regulated, filtered air supply, prepare your fluid line, and test the pattern 6-8 inches from a test piece before applying paint with parallel, overlapping strokes.

That’s the direct answer from the Graco manuals. Most guides stop at “set it to 30 PSI,” which is how you blow material past the workpiece and waste half your paint. The real work happens before you pull the trigger.

What follows is the setup most weekend painters skip: the air filter that catches moisture, the fluid regulator that controls flow, and the ground wire that stops static sparks in a spray booth. We’ll walk through the Graco G15 and G40 specs, the difference between HVLP and conventional limits, and the one cleaning step that prevents a $200 nozzle replacement.

Key Takeaways

• Air pressure at the gun is not compressor tank pressure. You need a regulator at the gun to hit the 7-10 PSI range for atomizing thin materials; exceeding 14 PSI at the inlet voids HVLP certification.
• Fluid pressure is separate and higher. A Graco G15 gun handles up to 1500 PSI fluid pressure, but you control it with a fluid regulator on the line, start low (5-30 PSI) and adjust for flow.
• Hose size causes pressure drop. Using an air hose smaller than 3/16 inch I.D. (5mm) strangles the gun; the manual includes a pressure-drop chart to compensate.
• Flush the fluid line with solvent before connecting. Blow out the line with air first, then flush. Sediment from a dirty line clogs the tip on the first trigger pull.
• Ground everything. The gun, the workpiece, the fluid container, and your solvent pail must be grounded to a true earth ground with less than 1 megohm resistance to prevent static ignition.

The Three Pressures Your Manual Actually Lists

Forget the generic “15-30 PSI” advice. Your spray gun’s performance hinges on three distinct pressures, and only one of them is set at the compressor. The other two are controlled at the gun itself.

The Graco G15/G40 manual gives the numbers. Maximum working air pressure is 100 PSI. Maximum gun inlet air pressure for HVLP operation is 14 PSI. Atomizing air pressure for low-viscosity materials starts at about 5 PSI when triggered and typically sits between 7 and 10 PSI.

Gun Inlet Air Pressure: For HVLP operation, do not exceed 14 psi (0.098 MPa, 0.98 bar) at the gun air inlet. This is a regulatory limit for transfer efficiency, not a suggestion.

If your compressor is set to 90 PSI and you run a 50-foot hose to the gun, you might deliver 30 PSI at the inlet. That’s fine for a conventional gun but it blows the HVLP limit and throws half your material into the air as overspray. The fix is a regulator mounted right at the gun.

Fluid pressure is the other variable. A Graco G15 has a maximum working fluid pressure of 1500 PSI; a G40 handles 4000 PSI. You’ll never need that much for paint. Industrial coatings might. The point is the ceiling exists, and you control fluid pressure with a separate regulator on the fluid line. Start at 5 PSI and work up until the flow matches your stroke speed.

Pressure Type	Typical Range	Control Point	What Happens If Wrong
Compressor Tank	90-150 PSI	Compressor Regulator	Provides reservoir volume; doesn’t directly control gun.
Gun Inlet Air	7-14 PSI (HVLP)	Regulator at Gun	>14 PSI = high overspray, poor finish. <7 PSI = poor atomization, orange peel texture.
Fluid Line	5-30 PSI (industrial)	Fluid Regulator on Line	Too high = runs and sags. Too low = uneven coverage, dry spray.
Atomizing Air	5-10 PSI	Gun Trigger & Valve	Fine-tunes the fan pattern; set after inlet pressure is correct.

The third pressure is the drop across your hose. A skinny hose acts like a kinked garden line. The manual mandates a 3/16 inch I.D. Or larger air hose. If you use a 1/4 inch hose for flexibility, you must consult the pressure-drop chart in the manual and set your regulator higher to compensate. Not checking this is why your gun sputters at the end of a long stroke.

Setting Up Your Air and Fluid Lines

This is where projects go sideways before the first drop of paint flies. The connections look simple, but the specifics in the manual prevent leaks, clogs, and finish defects.

Start with the air line. Your gun’s air inlet has a 1/4-18 NPSM (R1/4-19) compound male thread. It needs a female swivel connector. Before you attach anything, install an air filter and a regulator in the line, as close to the gun as practical. The filter catches water and oil from the compressor tank, moisture that ruins a finish by causing fisheyes and poor adhesion. The regulator lets you dial in the 7-14 PSI the gun actually needs.

Where this goes sideways: Skipping the air filter. One teaspoon of compressor condensate sprayed through your gun looks like tiny craters in the final coat. The repair is sanding the entire piece and starting over.

Now the fluid line. The fluid inlet is typically a 3/8-18 NPSM thread. The rule here is brutal: before connecting the fluid line, blow it out with air and flush it with solvent. Any debris sitting in that hose from the last job, dried paint flakes, dust, will shoot straight into the gun’s fluid nozzle and clog it. The first symptom is a distorted fan pattern. The fix is a full teardown.

Install a fluid filter on the line if your system doesn’t have one. It’s a cheap screen that catches sediment. For precise control, add a fluid regulator. This is separate from your air regulator and lets you adjust material flow independently. If you can’t get enough flow at a reasonable pressure, you need a larger nozzle tip, not more pressure.

For a complete air compressor setup, ensure your compressor can deliver the required air volume. A small pancake compressor might run a trim gun, but it will struggle with a full-size paint spray gun running continuously.

Choosing and Installing the Spray Tip

The tip is the gatekeeper. It determines how much material flows and how it’s shaped. Picking the wrong one guarantees a bad finish.

Graco breaks tips down by orifice size and recommended fluid viscosity. A smaller orifice (like 0.047 inches) is for light fluids, lacquers, thin enamels. A larger orifice (0.098 inches) is for heavy materials like mastics or roof coatings. The manual includes a spray tip selection chart that matches orifice size to both flow rate and material type.

Installing the tip seems straightforward, but the alignment pin matters. The air cap has a pin that must seat into a corresponding hole on the tip assembly. If you force it and cross-thread it, you’ll damage the threads on the gun body. Hand-tighten until snug, then use the wrench that came with the gun for the final quarter-turn. Over-tightening deforms the soft brass and causes leaks.

For systems using a portable air compressor, tip selection is even more critical. You have less air volume on tap, so a tip designed for lower air consumption, like those on an LVLP gun, can be a better match than a high-flow conventional tip.

The Spray Pattern Test

Never spray your project first. The test pattern tells you everything about your setup before you commit.

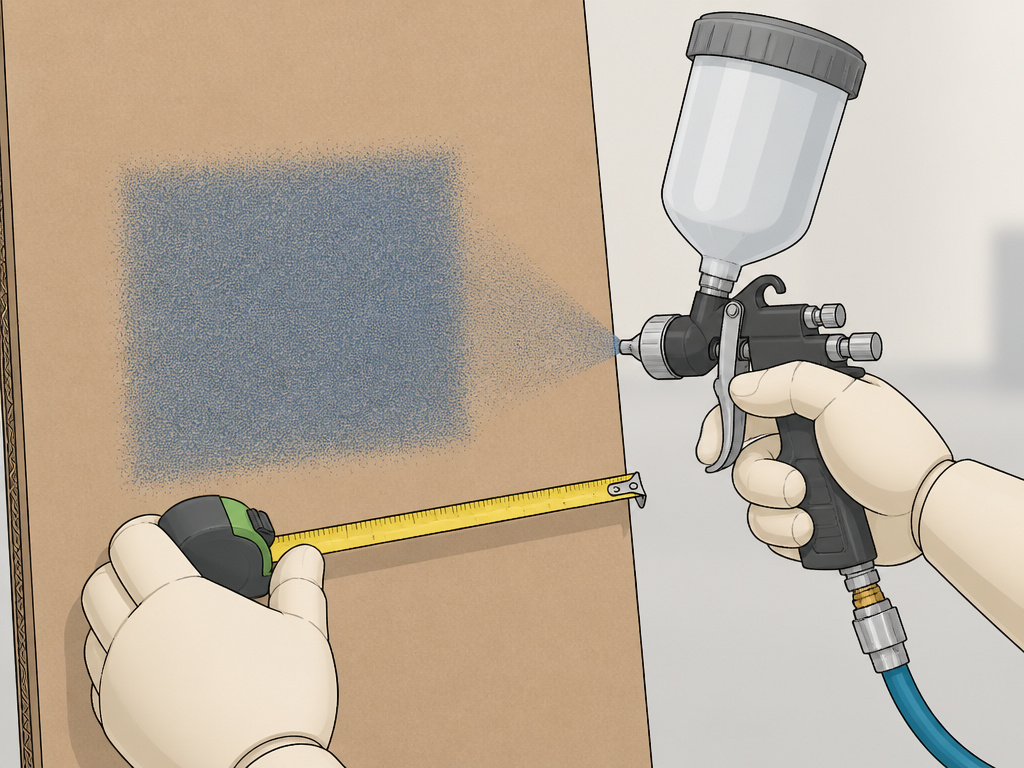

Find a large piece of cardboard or scrap material. Hold the gun perpendicular to the surface, 6 to 8 inches away. Pull the trigger fully for one second. You’re looking for a flat, even fan with no heavy edges or tails. A proper pattern looks like a rectangle of evenly distributed dots.

If the pattern is round, adjust the fan control knob on the gun. If it’s heavy on one side, your air cap horns might be misaligned, loosen the cap, rotate it slightly, and retighten. If you see streaks or splits, the fluid tip is likely clogged or damaged.

Common mistake: Testing from 2 feet away. At that distance, any pattern looks fine, but you’ll apply paint too dry and get a rough, sandy texture called overspray fallout. The correct distance is the width of your hand.

This test also verifies your air compressor for spray painting can maintain pressure. If the pattern starts strong and then fades, your compressor can’t keep up with the gun’s air demand. You need a larger tank or a higher-CFM compressor.

Operation and Application Technique

Now you spray. The mechanics are simple; consistency is hard.

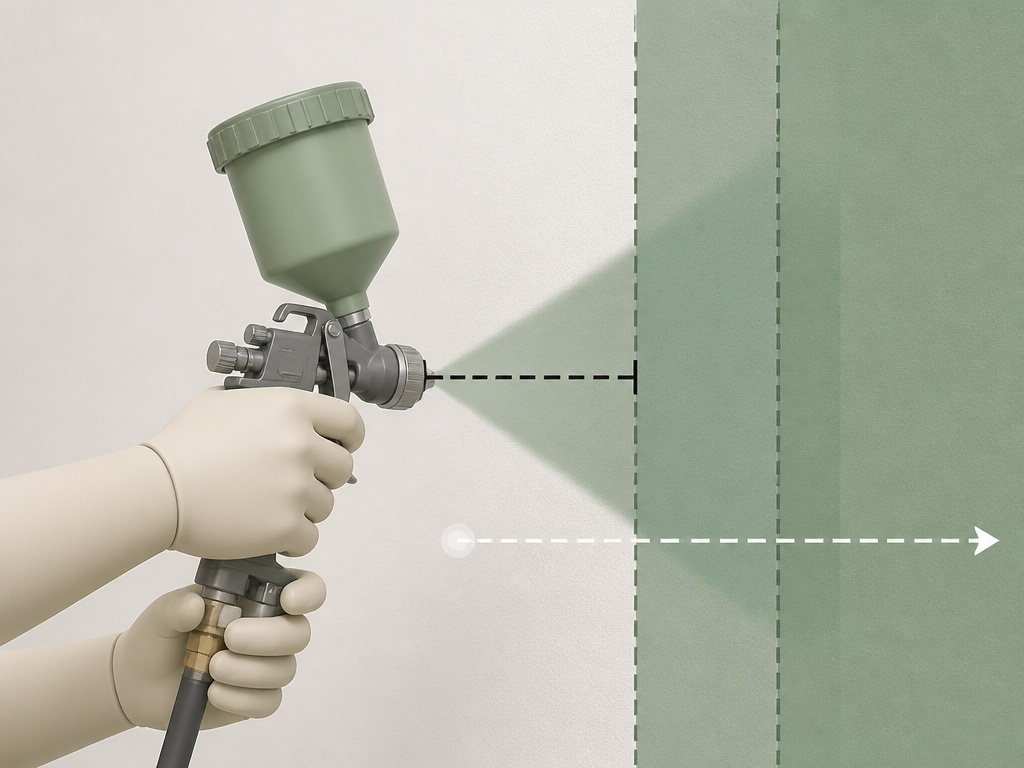

Keep the gun perpendicular to the surface and maintain that 6 to 8 inch distance. Move your entire arm, not just your wrist, in smooth, straight strokes. Each pass should overlap the previous one by 50 percent. This double-coats the surface and eliminates stripes.

Start your stroke before the workpiece and finish after it. Triggering on and off the surface creates heavy start and stop points. For vertical surfaces, spray side to side, not up and down, to minimize runs.

The goal is a “wet coat”, enough material to flow out and self-level, but not so much that it sags. If you see orange peel, you’re too far away or your air pressure is too high. If you get runs, you’re too close, moving too slow, or your fluid pressure is too high.

For larger projects, a dedicated air compressor for spraying with a high CFM rating prevents the motor from cycling constantly, which causes pressure fluctuations and an uneven finish.

Flushing, Cleaning, and Storage

Cleaning isn’t optional. Dried paint inside the gun turns a $10 solvent flush into a $150 repair kit.

The manual lists five times you must flush: before changing colors, before fluid can dry in the equipment, at the end of the day, before storing, and before repairing. Use a solvent compatible with both your paint and the gun’s wetted parts (usually nylon and aluminum). Never use methylene chloride with formic acid, it damages nylon.

The procedure: Empty the fluid cup or line. Pour solvent into the cup or pull it through the fluid line. Spray it through the gun into a grounded metal waste container until it runs clear. Disassemble the gun, remove the air cap, fluid tip, and needle. Soak them in solvent and clean the ports with soft brushes. Dry everything with compressed air.

The part nobody mentions: Ground your solvent pail. Use a metal pail placed directly on a concrete floor, not on cardboard. Attach a ground wire from the pail to a true earth ground. Static spark from spraying solvent into an ungrounded container can ignite fumes.

Lubricate the needle packing and trigger assembly with the grease specified in the manual before reassembly. Store the clean, dry gun in a case or bag to keep dust out. A set of air compressor accessories often includes the right brushes and picks for this job.

Troubleshooting Common Spray Gun Problems

Even with perfect setup, things go wrong. Here’s how to diagnose the usual suspects.

Problem	Likely Cause	Immediate Fix
Split or distorted fan pattern	Clogged fluid tip or air cap.	Stop. Clean the tip and cap horns with solvent and a soft brush.
Orange peel texture	Air pressure too high, gun too far from surface, or material too thick.	Reduce air pressure 2-3 PSI, move closer, or thin material slightly.
Runs and sags	Too much fluid, gun too close, or moving too slow.	Increase stroke speed, check fluid pressure isn’t set too high.
Dry, rough spray (overspray)	Gun too far from surface, excessive air pressure.	Check your 6-8 inch distance; reduce inlet air pressure.
Pulsing or sputtering	Compressor can’t keep up, clogged fluid filter, or air in fluid line.	Check compressor CFM vs. Gun demand; clean filter; ensure fluid line is bled.
Fisheyes (small craters)	Contamination on surface (silicone, oil) or water in air line.	Clean surface with wax and grease remover; drain compressor tank and check air filter.

If you’re using an HVLP spray gun compressor, remember its lower pressure requirement. Many “poor atomization” issues with HVLP are actually from using a compressor that can’t deliver enough air volume at the low pressure, causing the gun to starve.

Frequently Asked Questions

What size air compressor do I need for a spray gun?

You need a compressor that delivers more CFM (cubic feet per minute) than your gun’s consumption at the operating pressure. A typical HVLP gun might use 7-12 CFM at 10 PSI. Check your gun’s manual for its exact CFM requirement. A 20-gallon compressor is a common starting point for hobbyists.

Can I use an air compressor spray gun for latex paint?

Yes, but you must thin it according to the paint manufacturer’s directions, usually with water, until it reaches a milky consistency. Strain it before pouring it into the gun to remove any lumps. Use a larger fluid tip (like a 0.015 or 0.017) to handle the thicker material.

Why is my spray gun spitting paint?

This is usually a clog or an air leak. First, check and clean the fluid nozzle. Second, ensure all fluid connections are tight. Third, check the needle packing for wear; a worn packing can let air into the fluid stream, causing spitting.

How do I prevent water from coming out of my spray gun?

Water comes from condensation in your compressor tank. Install a moisture trap or filter/regulator combo in your air line, as close to the gun as possible. Drain your compressor tank after every use. In humid conditions, a refrigerated air dryer is the professional solution.

What’s the difference between HVLP and LVLP?

HVLP (High Volume Low Pressure) uses a high volume of air at low pressure (under 14 PSI at the gun) for high transfer efficiency and less overspray. LVLP (Low Volume Low Pressure) uses less air volume, making it better for smaller compressors, but it may be slightly slower. For fine finishing, HVLP is the standard. For an air compressor for paint guns, ensure it matches the technology.

The Bottom Line

Using a spray gun isn’t about brute force. It’s about matching three numbers from the manual: air pressure at the inlet, fluid pressure on the line, and hose internal diameter. Get those right, and the finish follows.

Skip the commodity advice. Ground your metal pail. Flush the fluid line with solvent before you connect it. Test your pattern from 6 inches away. That’s the difference between a job that looks professional and one that needs a full sand-down next weekend.

For most DIYers painting furniture or cabinets, a Graco G15 or a comparable HVLP gun paired with a solid 20-gallon compressor is the default. It covers the large majority of materials and projects without the complexity of industrial systems. The rest is in the manual, read it, then go make some dust.
