Comparing Brushless vs Non Brushless Drills: A Full Guide

Brushless vs non brushless drill comes down to three things: maintenance intervals, power delivery, and upfront cost. A brushless drill has no carbon brushes to wear out, uses electronics to adjust power to the task, and runs cooler for longer tool life. A brushed (non-brushless) drill uses physical brushes contacting a commutator, requires replacement every 50-60 hours of use, and delivers fixed power regardless of resistance.

The 50-60 hour figure is printed in the DeWalt DCD780 manual as the expected maintenance cycle before brushes fail.The brushless alternative sidesteps that entire schedule.

What follows: the mechanical reason brushless lasts longer, a side-by-side table of where each type wins, and the specific jobs where paying more for brushless is a waste of money.

Key Takeaways

• Brushed drills need new carbon brushes every 50-60 hours of runtime — a documented maintenance cost.
• Brushless motors adjust power electronically, using up to 50% less battery on light tasks versus running full-tilt.
• Excessive heat from brush friction degrades motor windings and battery cells over time; brushless runs up to 50% cooler.
• For high-volume, repetitive tasks like drywall or decking, brushless pays back. For occasional hole drilling in softwood, a brushed drill is sufficient.
• The performance gap is smallest in 12V compact drills; the brushless advantage amplifies with 18V/20V heavy-duty tools.

How Does a Brushless Drill Motor Actually Work?

A brushless motor replaces physical friction with electronic timing. In a brushed motor, spring-loaded carbon brushes press against a spinning copper commutator to transfer power. This contact creates friction, heat, and eventually wears the brushes down to a nub.

A brushed drill requires new brushes after every 50 to 60 hours of use, but brushless models don’t have any brushes that need replacement.

Source: Consumer Reports brushless drill guide

A brushless motor uses a ring of permanent magnets around the outside and a stationary core (stator) with copper windings inside. An onboard circuit board with sensors detects the rotor’s position and pulses electricity to the correct windings at the exact moment to create magnetic rotation. No parts touch to create spin.

This is why a brushless tool can sense load. Driving a screw into drywall meets little resistance. The circuit board delivers just enough power to seat the screw, then stops. Driving that same screw into dense oak requires more torque. The board responds by sending a stronger pulse. This variable power draw is the root of the extended battery life claim.

The absence of rubbing parts also means less energy converts to waste heat. Heat is the enemy of both lithium-ion batteries and motor insulation.

The 50-Hour Brush Replacement Ceiling

Brush maintenance is a scheduled part of owning a brushed power tool. Ignore it, and the tool stops working.

The brushes are consumable items. They are made of carbon, sometimes with copper flakes, and they erode with use. As they wear, the spring pressure decreases, contact becomes inconsistent, and the motor performance drops. You’ll notice more sparking at the tool’s vents, a drop in maximum speed, and eventually a complete failure to start.

Where this goes sideways: Running a brushed drill with worn-down brushes. The arcing can damage the commutator bars, turning a $5 brush replacement into a $90 motor repair.

The timeline isn’t vague. The DeWalt DCD780/DCD785 manual lists brush inspection as part of routine maintenance, with the industry standard replacement interval at 50-60 hours of operation. For a homeowner using a drill for an hour every weekend, that’s about a year. For a contractor running it five hours a day, that’s every two weeks.

Replacement brushes themselves are cheap, often under $10 for a pair. The real cost is downtime and the habit of ignoring maintenance until the tool fails mid-job. A brushless motor deletes this entire calendar item.

Side-by-Side: Where Each Type Excels

This is about matching the tool’s engineering to the job’s actual demands. A Bondioli & Pavesi MSB 050 brushless motor is built for industrial machinery; a brushed motor in that application would be absurd.The reverse is also true sometimes.

Scenario	Brushed Drill Winner	Brushless Drill Winner	Why
High-volume screw driving (decking, drywall)		Bosch GTB 12V-11 or 18V brushless model	Efficiency and battery life. The brushless motor’s variable output means 1,200 screws per charge (as Bosch claims) vs. Maybe 800 on a brushed model.
Occasional DIY (hanging pictures, assembling furniture)	Basic 12V or 18V brushed model		The 50-hour brush replacement ceiling might take 3 years to hit. The cost savings upfront are real.
Working in dense, abrasive materials (hardwood, masonry)		Any 18V+ brushless hammer drill	Sustained power under load without overheating. The brushless motor maintains speed where a brushed motor would bog down and overheat.
Need for compact, lightweight tool	Skil PWRCORE DL527502 (brushed)		Brushless enables smaller tools, but in the 12V class, the size difference is marginal and the price jump is significant.
Professional, daily use		All major pro lines (DeWalt XR, Bosch Pro, Makita LXT)	Reliability and total cost of ownership. Eliminating brush replacements and reducing heat stress pays back within a year for a full-time user.

The table shows the decision is use-case driven. If your drill sits in a drawer 51 weeks a year, the functional differences between a basic brushed model and a brushless one are academic. If it’s your livelihood, they’re economic.

The Hidden Cost: Heat and Battery Life

Friction creates heat. In a brushed motor, the constant rubbing of carbon on copper generates significant thermal energy. This heat soaks into the motor’s windings, weakening the insulation over hundreds of cycles. It also heats the adjacent battery pack.

Brushless motors are also smaller than brushed motors, which brings down the overall size of the tool. Lauren Chell, a product manager at Dewalt, cites an example of a brushless model that’s 25 percent more compact than the brushed version the company makes.

Excessive heat is the primary killer of lithium-ion batteries. Consistently running a brushed drill hard shortens the battery’s overall lifespan, perhaps by 20-30% compared to the same pack on a cooler-running brushless tool. You’re not just buying brushes; you’re buying batteries more often.

The brushless advantage in runtime is twofold. First, no energy is lost to friction. Second, the smart power delivery means the tool isn’t drawing max amps when half will do. Consumer Reports notes this can translate to up to 50% longer runtime on a single charge for equivalent tasks.

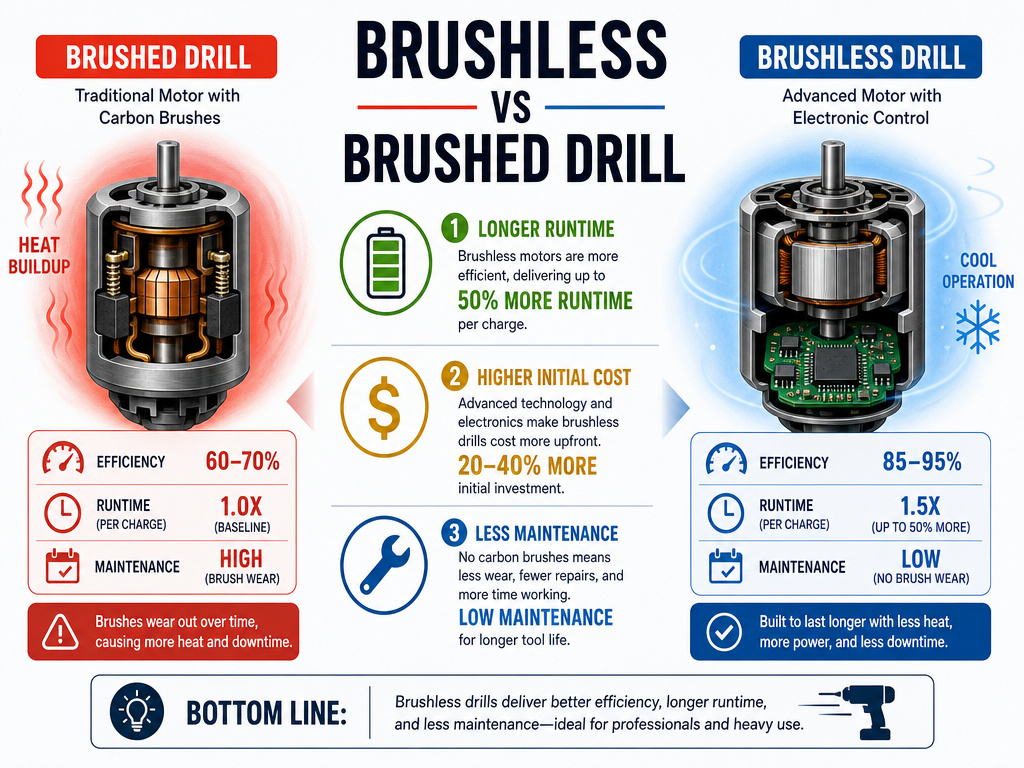

Brushless vs Brushed Drill: A Quick Comparison Table

For a snapshot of the core trade-offs, this table lays out the operational realities.

Feature	Brushed Drill	Brushless Drill	Real-World Impact
Maintenance	Brush replacement every 50-60 hrs.	No brush replacement.	Brushed: $5-$10 & downtime every few months for pros. Brushless: zero scheduled maintenance.
Efficiency	Less efficient; energy lost as heat & sparking.	Highly efficient; minimal energy loss.	Brushless provides longer battery life and less heat stress on components.
Power Delivery	Fixed output; runs at full power setting.	Electronically variable; matches power to load.	Brushless saves battery on easy tasks, maintains speed on hard ones.
Heat Generation	Runs hotter due to brush friction.	Runs up to 50% cooler (per Makita).	Longer motor life, longer battery life with brushless.
Upfront Cost	Lower. Proven, simpler technology.	Higher. More complex electronics.	Brushed wins on initial purchase price for equivalent specs.
Best For	Occasional users, budget-first buyers, specific compact drill needs.	Professionals, high-volume users, those investing in a cordless drill system for the long term.

The “Best For” column is the deciding factor. Your usage pattern dictates the better value.

When a Brushed Drill Still Makes Perfect Sense

Brushless isn’t automatically the right answer. For a significant slice of the market, a brushed drill is the smarter, more rational purchase.

First, consider voltage. In the 12V class, designed for light duty and tight spaces, the performance delta shrinks. A 12v drill like the brushed Skil PWRCORE DL527502 is, as Consumer Reports noted, “less powerful, limiting use to smaller screws and drills.” That’s fine. If your work is “smaller screws and drills,” you don’t need the extra power or efficiency. You need a capable tool that costs less.

Second, consider frequency. The 50-hour brush lifespan is a runtime hour, not a calendar year. A homeowner might accumulate 10 hours of drill use a year. At that rate, the brushes will last five years—likely longer than the warranty and perhaps longer than their interest in the tool. The promise of “no maintenance” is meaningless if you never hit the maintenance interval.

Skip this if: You drill fewer than 50 holes a year. The brushless premium buys you benefits you will literally never use.

Finally, consider the ecosystem. If you already own several brushed tools and batteries from a brand like DeWalt or Makita, adding a brushed drill driver to that kit is often cheaper than jumping to a new brushless platform. Compatibility has value.

Making the Choice: Your Drill’s Next 500 Hours

Stop thinking about specs and start thinking about the next three years. What will you actually do with the tool?

For a homeowner anchoring shelves and building a backyard planter: buy a brushed model. A corded drill like the Bosch GBM 13-2 RE offers brutal, maintenance-free power for decades at a low price. A basic cordless brushed model does the same without a cord.

For a contractor framing walls or installing drywall daily: buy brushless. The brushless technology in a DeWalt 20V MAX XR or Bosch GWS 18V-10 isn’t a luxury; it’s an amortized cost savings on batteries, downtime, and replacements. The tool works harder, longer, and cheaper per hour.

For the serious DIYer who tackles multi-weekend projects: lean brushless. The performance of 12v and 18v drills in brushless form translates to less battery swapping, more control driving long screws, and the headroom to handle unexpected hardwoods without stalling. It’s the difference between finishing a deck in a weekend and finishing it frustrated.

One answer covers most home shops: an 18V brushless drill-driver. It’s the default for a reason. The price gap has narrowed, and the benefits—battery life, durability, smart power—apply even if you don’t push it to the limit. The brushed alternative is for edge cases: tight budgets, ultra-infrequent use, or as a dedicated secondary tool.

Frequently Asked Questions

Is a brushless drill more powerful than a brushed drill?

Not inherently. A well-built brushed motor can deliver high power. The advantage is sustained power under load. A brushed motor bogs down and overheats; its power output drops as it heats up. A brushless motor’s electronics maintain the set speed by delivering more current as needed, so it holds its rated power longer during tough cuts. For peak torque in short bursts, they can be equal. For continuous heavy work, brushless wins.

How long do brushless drill motors last?

Significantly longer than brushed motors, often 2-3 times the lifespan. The lack of brush and commutator wear removes the most common point of failure. Failure in brushless tools tends to come from electronic component issues or bearing wear, both of which take far longer to develop. Many professional-grade brushless tools are designed to last over 1,000 hours of use.

Can you repair a brushless drill?

Yes, but it’s more complex and often requires professional service. Instead of swapping carbon brushes, a repair might involve replacing a circuit board, a sensor, or the entire motor assembly. This is why the warranty matters. Most reputable brands offer a 3-year warranty on brushless tools, covering these electronic components. For a brushed motor drill, a handy user can often perform the most common repair (brush replacement) themselves in minutes.

Are all new drills brushless now?

No, but brushless dominates the mid-tier and professional markets. In the heavy-duty category, virtually all new models are brushless. In the general-use and value segments, brushed models remain widely available and competitively priced. You can still find new brushed drills because they fulfill a valid market need for affordable, simple tools.

The Bottom Line

Choose a brushed drill for its lower upfront cost and simplicity, knowing you’ll schedule a brush check every 50 hours of runtime. Choose a brushless drill for its longer tool life, smarter battery use, and freedom from that maintenance calendar, accepting the higher initial price.

For most people building a tool kit for home projects, the brushless premium is worth it. The benefits compound over time, even with light use. For anyone who drills for a living, the question is settled: brushless is the standard.

Your drill is a long-term purchase. Buy for the work you’ll do in year two, not just the project you have this weekend.
