Step-by-Step Guide: How to Reverse a Drill’s Rotation Safely

To reverse a drill, first locate the forward/reverse switch or button. On most cordless and corded electric drills, it’s a sliding switch above the trigger. Slide it to the side marked with an arrow pointing away from the chuck. For air-powered drills, it may be a slide on the rear or a push-and-hold button. Always let the drill come to a complete stop before changing direction to prevent gear damage.

That stop-before-switching rule isn’t just a safety suggestion. It’s a mechanical guard. The gears inside a drill are under load when spinning. Forcing them to reverse while moving shears the teeth. You’ll hear a sharp metallic crunch, and the drill will either jam or lose torque permanently.

What follows is a map of every common reversal system, from the slide on a Harbor Freight drill to the spring-loaded knob on an Eastwood right-angle model. You’ll learn how to identify yours, the one mistake that strips gears, and what to check when reverse just doesn’t engage.

Key Takeaways

• The forward/reverse switch is almost always above the trigger on electric drills; air drills use slides or buttons on the top rear.
• Let the chuck stop completely before switching direction. Changing while spinning destroys planetary gears.
• If reverse doesn’t work, check for a locked chuck, a stuck switch, or a tripped overload protection circuit.
• Reverse is for extracting screws and bits, not for left-handed threading unless your drill’s manual explicitly allows it.
• Always disconnect power (unplug or remove battery) before inspecting or cleaning the reversal mechanism.

The Universal First Step: Locate the Switch

The forward/reverse switch controls the polarity of the motor’s electrical current or the path of pneumatic air, physically reversing the rotation of the chuck.

You won’t find it on the chuck itself. Look at the drill’s body, directly above the trigger. On a vast majority of cordless drills like the Ryobi 18V ONE+ series and corded models like the Harbor Freight 3/8″ Variable Speed Reversible Drill (Model 58528), it’s a horizontal slider. One side shows an arrow pointing toward the chuck (forward), the other shows an arrow pointing away (reverse). The action is simple: slide and hold.

Some professional-grade and all air-powered drills use a different layout. The Sioux Tools SDR10P pistol series uses a slide on the top, rear of the tool. The Eastwood 3/8″ Reversible Right Angle Drill uses a system where you disconnect the air, push a spring-loaded button, and turn a knob a quarter turn. The principle is the same—you’re changing the path of energy to the motor—but the control is in a different place.

Electric Drill Switch Operation

For battery and corded electric drills, the switch is a direct electrical control. Sliding it changes the connection of two motor wires, reversing the magnetic field and the motor’s spin. It’s a solid-state connection; there’s no mechanical clunk. The switch should move crisply between its two stops. If it feels mushy or doesn’t click into place, debris or wear is the likely culprit.

Pneumatic (Air) Drill Reversal Systems

Air drills operate on redirected airflow. A slide or button physically moves a valve spool inside the tool, sending compressed air to drive the motor vanes in the opposite direction. This is why manuals like the one for the Lowe’s 3/8 IN. Reversible Drill emphasize ensuring the slide is fully left or right. A partial engagement means the valve isn’t fully open, starving the motor of air and causing it to stall or run weakly.

Drill Type	Typical Switch Location	Action Required	Performance Note
Cordless/Corded Electric	Above trigger	Slide to marked position	Instant direction change
Standard Air Drill	Top rear of tool	Slide fully to stop	Needs full air pressure (90 PSI)
Rapid-Reverse Air	Top button	Press and hold for reverse, release for forward	Used for quick tapping/backing-out sequences
Right-Angle Air	Side knob	Disconnect air, push button, turn knob 1/4 turn	Prevents accidental reversal under load

How to Safely Engage Reverse: A 5-Step Process

The process is straightforward, but skipping the order burns out motors. Follow these steps every time.

1. Release the trigger and let the drill stop. Listen for the motor whine to cease and watch the chuck. Don’t just slow it down; wait for zero rotation. This is non-negotiable.
2. Identify the correct direction. Need to remove a screw? The arrow should point away from the chuck. Need to drill a hole or drive a screw? The arrow points toward the chuck.
3. Move the switch firmly to its new position. Feel for the positive click or stop. Don’t halfway it.
4. Perform a direction check without load. Squeeze the trigger briefly. The chuck should spin opposite its forward direction. If it doesn’t, stop.
5. ​​Proceed with your task. Apply steady pressure. Reverse has the same torque as forward on most drills, so let the tool do the work.

Common mistake: “Bumping” the switch while the chuck is still coasting. The gears are still meshed. Forcing a reversal under even minimal rotation stress concentrates impact on the smallest planetary gears. They chip. The drill will start making a grinding noise within a few uses, and eventually, it’ll spin freely without turning the chuck.

Why Can’t I Just Flip the Switch While It’s Spinning?

It’s not a software lock. It’s pure physics. Inside your drill, a set of planetary gears reduces the motor’s high speed to the chuck’s usable torque. These gears are in constant mesh. When you reverse direction while they’re moving, you’re asking the gear teeth to slam into each other from the opposite side.

The shock load is immense. On a cordless drill, the electric motor can stall, spiking current and potentially tripping the battery’s protection circuit or overheating the motor windings. On an air drill, the sudden reversal can jam the motor vanes against the cylinder wall, scoring the surface and causing a permanent loss of power and air leakage.

The damage isn’t always immediate. You might get away with it a few times. But each event creates microfractures in the hardened steel gears. Eventually, a tooth shears off. Now you need a gear carrier assembly or a whole new tool. Letting the drill stop takes two seconds. Replacing gears takes two hours and a service manual.

What If Your Drill Won’t Reverse?

When the switch moves but nothing changes, you have a problem. Start with the simplest solutions before assuming the worst.

First, disconnect all power. Remove the battery or unplug the cord. For air drills, disconnect the hose and bleed the pressure.

1. Check for a locked chuck. Some drills have a chuck lock feature to prevent spin during bit changes. If engaged, it will override the direction switch. Look for a button or collar near the chuck and disengage it.
2. Inspect the switch mechanism. Look for visible debris, broken plastic, or a misaligned slider. Use a flashlight. For electric drills, a common failure is a cracked solder joint on the switch PCB. For air drills, the valve spool can get gummed up with old, moist air-line oil.
3. Test with a different power source. If you’re using a cordless drill, try a fresh, fully charged battery. A weak battery can sometimes lack the juice to overcome initial motor resistance in one direction. For a corded drill, try a different outlet. For an air drill, ensure your compressor is delivering a steady 90 PSI at the tool.
4. Listen and feel. Engage reverse and gently pull the trigger. Do you hear the motor trying to hum but nothing moves? That points to a mechanical jam in the gearbox. Does nothing happen at all—no sound, no vibration? That suggests an electrical fault in the switch, wiring, or motor.

Where this goes sideways: Assuming a dead motor when it’s just a dirty switch. Spraying contact cleaner into the switch housing and working the slider back forth 20-30 times fixes more “broken” drills than any other single action. Do this before you declare the tool toast.

If these steps don’t work, the issue is likely internal. On a budget cordless drill, repair often costs more than replacement. On a professional brushless drill or a pneumatic tool, a service center can usually replace the switch or valve assembly.

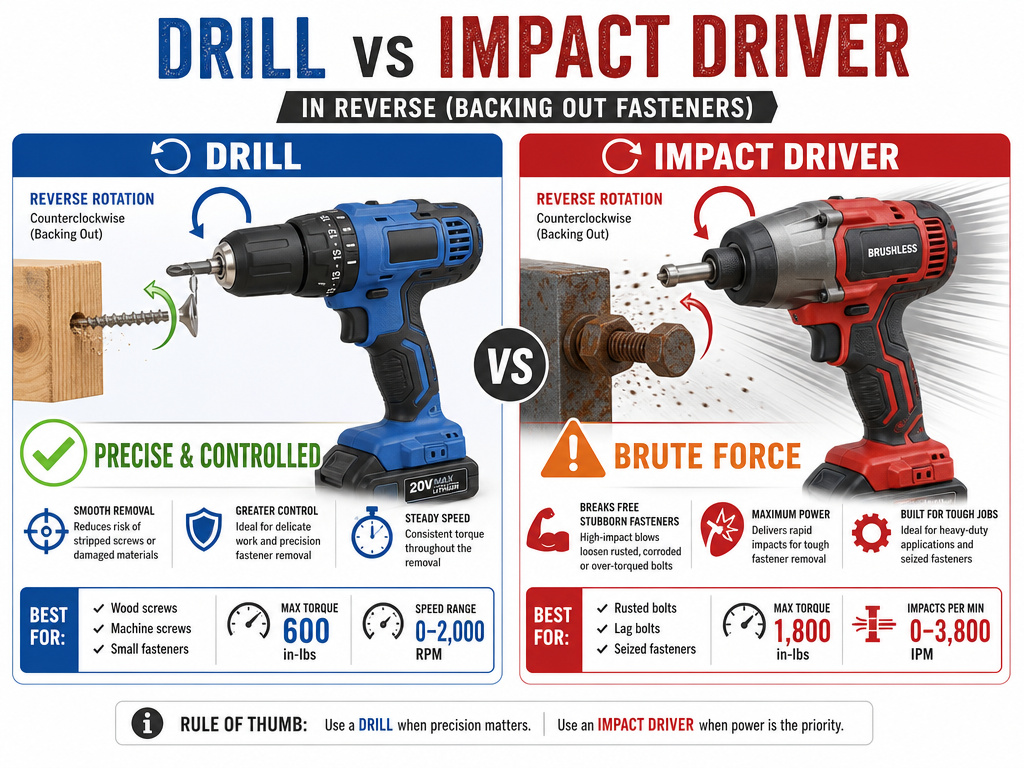

Reverse Function vs. Impact Driver: Know Your Tool

A drill’s reverse is for backing out screws and extracting stuck bits. An impact driver’s reverse is a weapon. Confusing the two strips screw heads.

A drill delivers constant rotational force (torque). The reverse function simply flips that rotation. It’s smooth and controlled, ideal for gently loosening fasteners.

An impact driver combines rotation with concussive, hammering blows. When you hit reverse on an impact driver, those hammering blows work in reverse too, applying sudden, extreme reverse torque. This is what removes seized lug nuts and stubborn bolts. It’s also what instantly rounds off the head of a standard Phillips screw if you’re not careful.

Task	Use Drill Reverse	Use Impact Driver Reverse	Why
Removing a wood screw	✓		Smooth torque prevents head stripping
Extracting a drill bit from wood	✓		Controlled backing out prevents bit breakage
Loosening a rusted bolt		✓	Concussive impacts break corrosion bond
Disassembling furniture	✓		Prevents damaging softer materials like particle board
Changing a drill bit	✓		Gentle loosening of a keyless chuck

Bottom line: Reach for the drill when you need precision and care. Grab the impact driver when you need brute force. Using a drill to remove a truly stuck fastener will stall the motor. Using an impact driver on a small screw will destroy it.

Special Cases: Right-Angle Drills and Hammer Drills

Some drills have unique reversal procedures. Missing a step here can leave you thinking the tool is broken.

Right-Angle Drills (like the Eastwood 3/8″ model) often have a safety lock to prevent accidental reversal during awkward, high-torque operation. The manual specifies: disconnect air supply, push in the spring-loaded reverse button fully, rotate the knob 1/4 turn clockwise. For forward, disconnect air, rotate knob 1/4 turn counter-clockwise to release. If you don’t disconnect the air first, the mechanism won’t engage.

Hammer Drills have a forward/reverse switch just like a standard drill vs hammer drill. However, you should never use the hammer function in reverse. The hammering mechanism is designed to impact in one direction (forward). Using it in reverse can damage the impact cam and clutch. If you need to remove a screw from masonry, switch the drill to “drill-only” mode, then engage reverse.

Frequently Asked Questions

Why does my drill have a middle setting on the switch?

The middle setting, often marked with a drill bit icon or simply a center detent, locks the trigger. It’s a safety feature to prevent the drill from accidentally starting when you’re changing bits or setting it down. It does not mean “neutral” for the motor. Always move the switch fully to the forward or reverse position for operation.

Can I use reverse to drill holes?

Technically, yes, a drill bit will cut in reverse. But you should never do it. Standard twist drill bits are designed to cut with a clockwise rotation (viewed from behind). Running them in reverse dulls the cutting edges rapidly, produces poor-quality holes with rough, torn edges, and provides almost no chip ejection. The bit will overheat and fail quickly.

My drill only works in reverse, not forward. What’s wrong?

This is almost always a faulty switch. The contacts for one direction have worn out or broken, while the other still works. On simpler drills, this can be a DIY fix with a replacement switch from the manufacturer. On complex models, it requires professional service. It’s rarely a motor problem.

Is there a left and right reverse?

No. “Reverse” is universally defined as the chuck rotating counter-clockwise when viewed from behind the drill (i.e., the bit unscrewing). “Forward” is clockwise (the bit screwing in). This is standardized across all major brands. Any drill that operates differently would have its forward and reverse labels swapped to match this convention.

Do all drills have a reverse function?

No. Most modern cordless and corded drills do, but some specialized models do not. Certain hammer drills designed for continuous rotary hammering (like some large SDS Max models) and some fixed-speed corded drills intended for production work may lack a reverse. Always check the tool’s specifications before purchase if you need this feature.

Before You Go

Reversing a drill is simple: find the switch, let the chuck stop, flip it. The complexity lies in understanding why that order matters and what to do when the simple action doesn’t work. Remember that the switch is a physical control redirecting power—treat it firmly but never force it. Diagnose failures starting with the power source and the switch itself before blaming the motor. And know that a drill’s reverse is a precision tool for extraction, while an impact driver’s reverse is for breaking things free.

For the vast majority of tasks around the house, a mid-range 18V drill with a clearly marked slide switch will do everything you need. Keep the chuck clean, the battery charged, and always let the tool stop before you ask it to go the other way.
