Single Stage vs Two Stage Air Compressors: Key Differences
This post contains affiliate links. As an Amazon Associate, we earn from qualifying purchases.
The difference between a single-stage and two-stage air compressor is how many times the air gets squeezed before it hits your tank. A single-stage does it once. A two-stage compresses the air to an intermediate pressure, cools it, then compresses it again to the final pressure. This two-step process is less stressful on the machine, runs cooler, and delivers 12–15% more air per unit of horsepower at pressures above 100 PSI.
That efficiency gain is the whole game. For a shop running a compressor 4,000 hours a year, the power savings from a two-stage unit can pay back the price difference in under two years. Below 100–125 PSI, a single-stage is simpler and cheaper. Above that line, the two-stage’s lower operating cost and longer bearing life win every time.
What follows: the exact pressure and duty cycle numbers where the math flips, the bearing wear that decides a rebuild timeline, and which industries the OEMs say actually need the second stage.
Key Takeaways
- The 125 PSI line is the practical divider. If your tools and processes consistently demand pressure at or above this point, a two-stage compressor is the efficient choice. Below it, a single-stage is adequate.
- A two-stage design spreads the mechanical load. A single-stage rotary screw compressor’s thrust rides on two bearings; a two-stage like the Kaishan KRSP2 uses seven. More bearings under less force means longer intervals between rebuilds.
- You get 12–15% more CFM per horsepower from a two-stage at full load, according to Sullair’s engineering data. For a 100 HP compressor, that’s like getting 15 free horsepower.
- The intercooler between stages is non-negotiable. It drops the air temperature after the first compression, increasing density so the second stage has less work to do. Skipping this stage cooling cuts efficiency and risks moisture problems downstream.
- For continuous, multi-shift industrial duty, the two-stage’s efficiency and durability are mandatory. For intermittent garage use, filling tires, running a nailer, a single-stage is the logical, cost-effective tool.
What Is a Two-Stage Air Compressor?
A two-stage air compressor is a machine that squeezes air in two distinct steps to reach a higher final pressure with less strain and heat than a single-stage unit. It uses an intercooler, a heat exchanger, between the stages.
In a two-stage reciprocating compressor, air is drawn into a larger first-stage cylinder and compressed to an intermediate pressure (often 40-60 PSI). This hot air then passes through intercooler tubes before entering a smaller second-stage cylinder, where it is compressed a second time to the final discharge pressure, up to 175 PSI or higher.
The intercooler is the critical component. By removing the heat of first-stage compression, the air becomes denser before it enters the second stage. Denser air is easier to compress further, which is where the efficiency gain comes from. This process is described in the Ingersoll Rand owner’s manual for their two-stage reciprocating models.
Think of it like climbing a tall staircase. A single-stage compressor tries to climb it in one exhausting leap. A two-stage compressor walks up half the stairs, rests on a landing (the intercooler), then walks up the second half. The second method is less taxing on the engine, or in this case, the motor and bearings.
The 125 PSI Pressure Threshold
Your required working pressure decides the contest before you look at a single spec sheet. The crossover point is 100–125 PSI.
If your highest-demand air tool needs 90 PSI to run properly, a quality single-stage compressor delivering 125 PSI max is perfectly matched. It will cycle on and off within its efficient range. The moment you have a tool, process, or system that needs a steady 125 PSI or more, you cross into two-stage territory. At that pressure, a single-stage unit is straining at its design limit, while a two-stage is just getting started.
Where this goes sideways: Running a single-stage compressor at its maximum rated pressure for extended periods. The discharge temperature climbs, oil breaks down faster, and moisture management becomes a constant fight. You’ll hear the motor labor on every cycle, and the pump life shortens dramatically.
This isn’t a minor difference. According to Sullair’s engineering data, a single-stage compressor operating at 100 PSIG at sea level works with a compression ratio of about 7.9:1. A two-stage compressor working to the same final pressure splits that work into two stages, each with a ratio of about 2.8:1. That lower per-stage ratio is where the 12–15% power savings comes from.
| Pressure Requirement | Single-Stage Viability | Two-Stage Advantage |
|---|---|---|
| Below 100 PSI (e.g., nailers, staplers, inflation) | Ideal. Lower cost, simpler maintenance. | Overkill. Higher upfront cost isn’t justified. |
| 100–125 PSI (e.g., impacts, ratchets, some sanders) | Adequate, but at its limit. OK for intermittent use. | Efficiency gains start. Better for continuous use. |
| Above 125 PSI (e.g., sandblasting, industrial machinery) | Not recommended. Will overheat, shortens pump life. | Required. Designed for continuous high-pressure duty. |
The tools you run dictate the pressure. A framing nailer might use 70-90 PSI. A 1-inch impact wrench for truck lug nuts might need 90-100 PSI. But a large sandblaster or a production line pneumatic cylinder often needs 125-150 PSI consistently. That’s the two-stage zone.
The Bearing Load Math That Changes Service Life
Mechanical wear is a numbers game, and two-stage compressors change the equation in your favor. The force generated by compressing air creates immense thrust against the compressor’s bearings. In a single-stage rotary screw compressor, two discharge bearings absorb 100% of that load.
A two-stage compressor splits the compression work, and it also splits the mechanical load. The Kaishan KRSP2 two-stage rotary screw design, for example, distributes the thrust load across seven bearings, four in the first stage and three in the second. Spreading the same total force over more than triple the bearing surface area reduces stress on each individual bearing.
I won’t recommend a two-stage for a home garage that sees 10 hours of use a month. But for a shop running 40 hours a week, that bearing math translates directly into years of extra service before a rebuild and thousands saved in unplanned downtime.
The result is predictable: longer service intervals and a dramatically lower chance of catastrophic bearing failure. This is a primary reason manufacturers can offer extended warranties on two-stage airends. The lower per-bearing load means they simply last longer under the same operating conditions. It’s not magic; it’s just good engineering.
Single Stage vs. Two Stage: A Side-by-Side Breakdown
Choosing isn’t about “better” or “worse.” It’s about matching the machine to the job. Here’s how they stack up across the deciding factors.
| Feature | Single-Stage Air Compressor | Two-Stage Air Compressor |
|---|---|---|
| Compression Process | One continuous squeeze to final pressure. | Two squeezes with cooling in between. |
| Max Operating Pressure | Typically 125-150 PSI (strained at the top end). | Commonly 175-200 PSI, built for it. |
| Efficiency at High Pressure | Less efficient above 100 PSI; motor works harder. | 12-15% more efficient at high pressure (per Sullair data). |
| Heat Generation | Higher discharge air temperature. | Lower discharge temperature due to intercooling. |
| Mechanical Wear | Higher load on fewer bearings. | Lower load per bearing; longer service life. |
| Upfront Cost | Lower. | Higher (more complex pump, extra parts). |
| Best For | Intermittent use, lower-pressure tools, home garages, budget projects. | Continuous operation, high-pressure tools (sandblasters, industrial machinery), auto shops, manufacturing. |
| Duty Cycle | Suited for 50-70% duty cycle (rests often). | Built for 100% duty cycle (can run continuously). |
When a Single-Stage Compressor Is the Right Call
This is the default for most home gamers and small workshops. If your use case ticks these boxes, save your money. * Your tools max out below 100 PSI. Think brad nailers, finish nailers, staplers, inflators, and small blowguns. * You use it intermittently. A 15-minute session Saturday morning, then off for a week. * Your budget is tight. The several-hundred-dollar difference buys a lot of hose, fittings, and an extra tool. * Space and portability matter. Single-stage compressors, especially pancake or hot dog styles, are lighter and more compact.
A solid home garage compressor like a reliable 20-gallon unit handles 90% of DIY tasks without breaking a sweat. The complexity of a two-stage system is unnecessary overhead.
When You Must Step Up to a Two-Stage Compressor
The cost premium pays for itself in reduced electricity bills and avoided downtime. You need a two-stage if: * Your tools or processes demand 125+ PSI continuously. Sandblasting cabinets, large die grinders, and some industrial air motors live here. * You run multiple high-CFM tools simultaneously. A body shop with two painters and a sandblaster can’t have pressure drops. * The compressor runs more than 4,000 hours a year. This is the threshold where the efficiency savings cover the price difference, as noted in industry analysis. * Downtime is catastrophic. A production line stopping for a compressor rebuild costs more per hour than the compressor itself.
Industries listed in the Ingersoll Rand manual, industrial plants, service stations, and auto repair shops, use them as primary or supplementary air sources because their work demands stable, high-pressure air for multi-shift operations. This is the realm of the industrial two-stage compressors like the Ingersoll Rand 7100E15-P or the Rolair H15312K60.

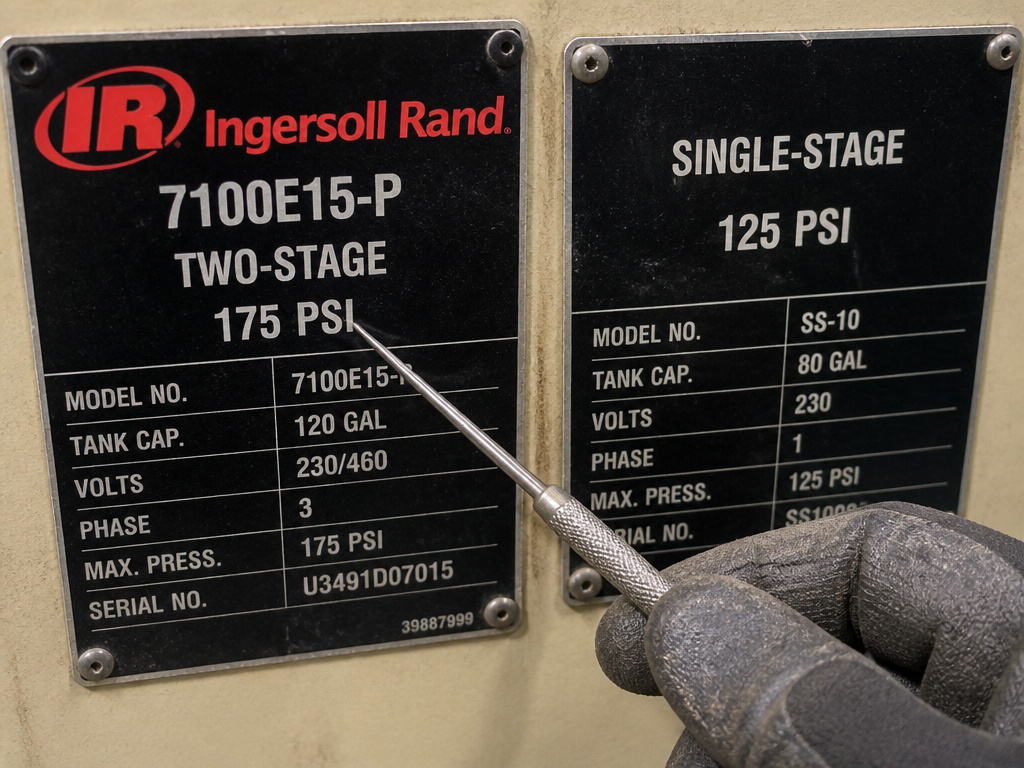

Real-World Models and What They Tell You
Spec sheets cut through the marketing. Let’s look at two machines from the same horsepower class.
The Ingersoll Rand 7100E15-P is a 15 HP, two-stage reciprocating workhorse. It delivers 51 CFM at 175 PSI, weighs 1,291 pounds, and is built for over 15,000 hours of trouble-free use in heavy shop or industrial settings. Its cast-iron construction and two-stage pump are built for the long haul in environments like fleet maintenance or manufacturing.
Compare that to a typical 15 HP single-stage compressor. It might also deliver 50-55 CFM, but its maximum pressure will likely top out at 125 PSI, and it won’t be rated for the same continuous duty cycle. The two-stage model buys you that extra 50 PSI of headroom and the mechanical design for continuous use.
For larger operations, the Sullair TS-32S series of two-stage rotary screw compressors (150-600 HP) is designed for 100% duty cycle. Sullair claims a 12-15% power advantage over equally sized single-stage compressors, citing the reduced differential pressure across each stage. At a power cost of $0.08/kWh, they project savings of over $14,000 per 1000 CFM over 8,000 hours of operation. That’s the business case in one line.
The part nobody mentions: That efficiency gain means you can sometimes buy a smaller two-stage compressor. A facility using a 300 HP single-stage unit might meet its air demand with a 250 HP two-stage like the Kaishan KRSP2, cutting both the purchase price and the long-term power draw.
How to Choose: Your 4-Step Decision Checklist
Forget the sales brochures. Answer these four questions in order.
- What is your highest required PSI? List every air tool you own or plan to buy. Find the one with the highest required operating pressure (not the max it can handle). That’s your target PSI. If that number is 125 or above, a two-stage compressor enters the conversation.
- What is your duty cycle? Estimate hours of use per week. Is it sporadic (DIY garage) or continuous (8-hour shop days)? A piston compressor designed for 50% duty cycle will fail quickly if run 100% of the time.
- What is your total CFM demand? Add up the CFM requirements of all tools you might run at once. Add a 25% buffer. This is your required CFM. A compressor for air tools must meet this number at your target PSI.
- Do the 2-year payback math. Estimate your annual run hours and local electricity cost. If the efficiency savings of a two-stage model (using the 12-15% rule) pay its price premium in under two years, it’s a smart buy. If you’ll never run it enough to hit that, the single-stage is the financially sound choice.
This checklist forces the decision out of the abstract. Your answers point to a machine size and type. For high-CFM, high-PSI needs, your search starts with a large two-stage compressor. For everything else, a robust single-stage or a smaller two-stage model suffices.
Frequently Asked Questions
Is a two-stage compressor better than a single-stage?
It’s better only when your needs match its strengths. For continuous operation above 125 PSI, yes, it’s more efficient and durable. For intermittent, sub-125 PSI use in a home garage, a single-stage is better because it’s cheaper and simpler. “Better” depends entirely on your pressure and duty cycle.
Can a two-stage compressor run all air tools?
Yes, a two-stage compressor can run any air tool. The question is whether it’s necessary. It’s overkill for a finish nailer but essential for a large sandblaster running all day. It provides more air at higher pressure than most tools will ever need, which isn’t a bad thing, but you pay for that capability upfront.
How much more efficient is a two-stage air compressor?
Manufacturer data, like that from Sullair, cites a 12–15% power savings at full load compared to an equally sized single-stage compressor when operating at common industrial pressures (around 100 PSIG). This efficiency comes from the intercooler reducing the work of the second stage. The savings are negligible at lower pressures.
Are two-stage compressors more reliable?
They can be, due to lower mechanical stress. Splitting the compression work across two stages reduces heat and bearing load. In a rotary screw model like the Kaishan KRSP2, the load is spread across seven bearings instead of two. Lower stress per component typically translates to longer service intervals and fewer unexpected failures under heavy use.
What size two-stage compressor do I need for my garage?
For a serious home garage running an impact wrench, sandblaster, or paint gun, a 60-gallon two-stage compressor delivering 15-20 CFM at 90 PSI is a common sweet spot. It provides enough reserve air for most tools without needing 3-phase power. For lighter duty, a quality 5-10 CFM single-stage compressor for your garage is more than adequate.
The Bottom Line
Don’t buy a two-stage compressor because it sounds more professional. Buy it because your tools demand pressure above 125 PSI or because your shop runs on compressed air for 8 hours a day. The 12–15% efficiency gain is real, and the bearing life is longer, but you need to run thousands of hours a year to make the math work.
For the weekend warrior, the single-stage is the rational choice. Its simpler reciprocating air compressor design is cheaper to buy and fix. But when your livelihood depends on a steady, high-pressure air supply, the two-stage’s robust design and lower operating cost aren’t a luxury. They’re the minimum viable tool. Match the machine to the job, and let the pressure gauge, not the brochure, make the final call.
