How to Winterize RV with Air Compressor: The 30 PSI Rule

To winterize an RV with an air compressor, you need a blow-out plug, a compressor set to no more than 30 PSI, and a systematic process to force water from every faucet and low point. Connect the compressor to your RV’s battery, attach the plug to the city water inlet, open all taps and drains, and blow air through until only a mist comes out. Skipping the water heater bypass or using too much pressure guarantees a springtime repair bill.

The 30 PSI ceiling isn’t a suggestion. It’s the maximum safe pressure listed in the VIAIR 400P/450P-RVS manual because RV plumbing has flow restrictors and sharp elbows that turn high pressure into a destructive water hammer. Pressure pushes; volume clears. You need enough air volume to keep a steady flow for several minutes, not a short blast at 100 PSI.

What follows is the full sequence: the mandatory prep steps most guides gloss over, the exact pressure adjustment for a winterization kit regulator, and the multi-stage blow-down that catches water hiding in low points after you think you’re done. This isn’t just about avoiding freeze damage. It’s about knowing where your system traps water when gravity drainage fails.

Key Takeaways

• Set your air compressor’s regulator to no more than 30 PSI before connecting to the RV. Higher pressure risks damaging plastic fittings and valves.
• Always bypass the water heater before blowing out the lines. Forcing air through a full water heater tank is ineffective and can damage the anode rod.
• Perform repeated blow-downs, waiting 30-60 minutes between cycles. Water droplets collect in plumbing low points and need time to coalesce before a second air pass can clear them.
• Use a dedicated blow-out plug attached to the city water inlet, not the fresh water tank fill. This pressurizes the entire cold-water supply system correctly.
• Consult your specific RV owner’s manual for model-specific drain valve locations and any special instructions for appliances like tankless water heaters.

The Non-Negotiable Prep: Draining Before You Blow

You don’t just start blowing. Gravity does the first 90% of the work if you let it. The air compressor handles the last 10%, the water stuck in faucet stems, P-traps, and low spots in the lines. Skip the drain step and you’re asking your compressor to do a job it wasn’t designed for, wasting time and likely leaving gallons behind.

First, disconnect from the shore water supply. Turn off the RV’s water pump. Locate and open every single drain valve on your rig, there’s usually one for the fresh water tank and another for the low point drains on the hot and cold lines. Your owner’s manual has the map.

Now, open every faucet inside: kitchen hot and cold, bathroom hot and cold, shower, and outside shower if you have one. Flush the toilet until the bowl empties. This relieves any vacuum lock and lets the system drain fully. Let it sit for ten minutes. You should hear dripping stop.

The part nobody mentions: If your RV has a water filter housing, unscrew the canister and drain it separately. That cavity holds a cup of water that won’t drain from the main lines and will freeze solid.

Finally, bypass the water heater. There’s a bypass valve kit installed on most RVs; switch it to the bypass position. If you don’t, you’re trying to blow air through a 6- or 10-gallon tank full of water. It won’t work, and the pressure can dislodge the anode rod inside.

The 30 PSI Pressure Rule (And Why More Isn’t Better)

This is where DIY winterization goes wrong. You look at your compressor gauge, see it can hit 150 PSI, and think “more power must be better.” It isn’t. RV plumbing is a network of narrow polyethylene tubes, plastic shut-off valves, and 90-degree elbows. It’s designed for water flow at 45-60 PSI, not a compressed air hammer.

The VIAIR 400P/450P-RVS winterization manual is explicit: “adjust the pressure to no more than 30 psi.” This isn’t arbitrary.

Adjusting the pressure regulator: pull the trigger on the tire inflation gun, while holding on the trigger pull out the knob on the winterization kit regulator, turn the knob to adjust the pressure to no more than 30 psi, push the knob back in place when pressure reached 30 psi or less on the regulator’s gauge, release the trigger.

. VIAIR Corporation, RV Winterization Kit Instruction Manual

At 30 PSI, you have enough force to push water droplets through the system without stressing the joints. At 100 PSI, you risk blowing a plastic slip fitting apart or cracking a valve seat. The pressure also doesn’t help with volume, you need sustained airflow, not a spike.

Compressor Setting	Risk	Why It Fails
100+ PSI	Joint failure, valve damage	Exceeds design pressure of residential RV plumbing components.
30-50 PSI (Recommended)	Safe, effective clearance	Matches system design pressure; provides steady flow without shock.
Below 20 PSI	Incomplete water removal	Lacks force to push water through high points and past faucet aerators.

Your compressor’s CFM (cubic feet per minute) rating matters more than its max PSI. A small pancake compressor might manage if you work one faucet at a time, but a larger garage air compressor with a 5-6 gallon tank will deliver the sustained volume you need without cycling on and off constantly. This is the same reason you need a capable sprinkler blowout compressor for irrigation lines.

The Step-by-Step Blow-Out Process

With the system drained and your compressor’s regulator set to 30 PSI, you’re ready to connect and clear the lines. This is a linear sequence. Jumping ahead means leaving water in a branch line.

Step 1: Connect the compressor. Power your compressor from the RV’s battery (with the engine running) or a separate vehicle’s battery. Connect the primary air hose to the compressor, then attach the tire inflation gun. Screw the blow-out plug from your winterization kit onto the gun’s quick-connect coupler.

Step 2: Plug into the city water inlet. Remove the external water supply hose. Thread the blow-out plug into the city water inlet, the same spot your fresh water hose connects. This is critical. Plugging into the fresh water tank fill will only pressurize the tank, not the plumbing system.

Step 3: Open the farthest faucet. Go inside and open the cold water side of the faucet farthest from the water inlet (usually the bathroom sink or shower). This gives the air a clear path.

Step 4: Start the air flow. Back at the compressor, press and hold the trigger on the inflation gun. You’ll hear the compressor kick on and air start rushing through the lines. At the open faucet, you’ll see a blast of water, then a steady stream, then a spluttering mist. Once only a fine mist comes out, close that faucet.

Step 5: Work through the system. Move to the next farthest faucet and repeat. Do all cold water taps first: kitchen sink, outside shower, toilet (hold the flush valve open). Then, switch to the hot water side. Remember, your water heater should be bypassed, so you’re blowing out the hot water lines only.

Step 6: Clear the drains and traps. Don’t forget the shower drain and sink P-traps. A quick blast of air into each drain will clear the standing water. Pour a cup of RV antifreeze down each drain after blowing to protect the trap seal.

Step 7: Shut down. When only mist comes from every outlet, release the trigger on the gun. Turn off the compressor. Unscrew the blow-out plug from the city water inlet and replace the standard cap.

Common mistake: Stopping after one pass. Water hides in low spots in the lines. After 30 minutes, go back and blow out each faucet again for 10 seconds. You’ll often get another tablespoon or two of water. That’s enough to split a pipe.

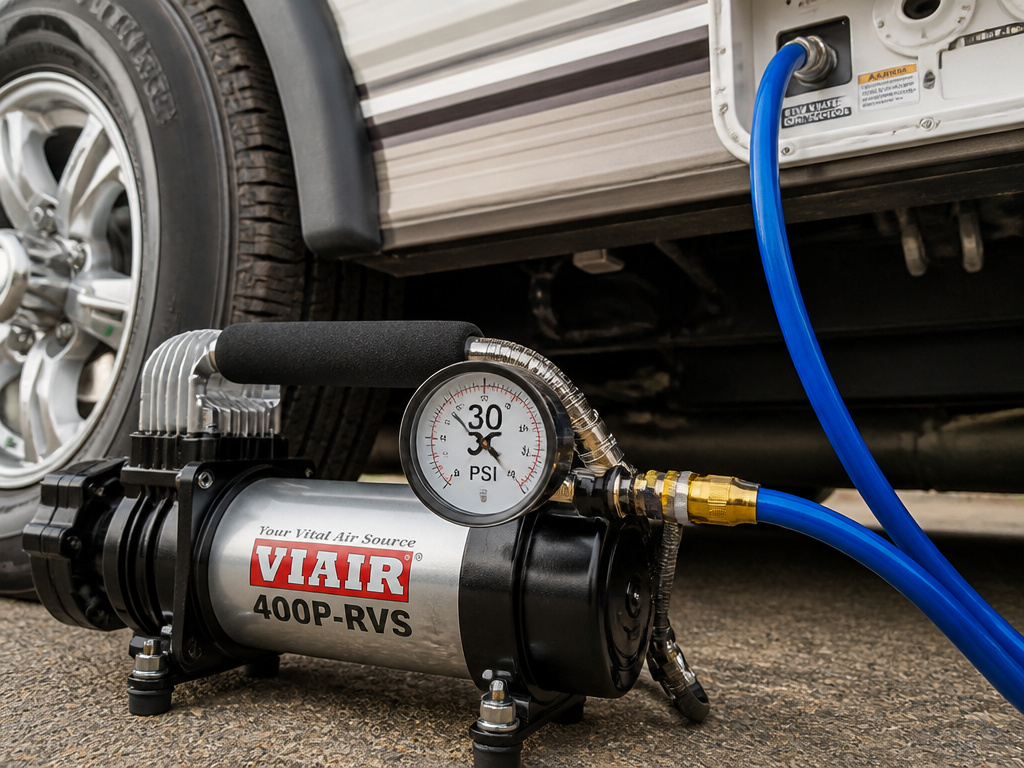

The Compressor You Actually Need

You don’t need a industrial 60-gallon shop compressor. But you do need one that can deliver a constant 30 PSI for minutes at a time without overheating. A tiny tire inflator will cycle on and off every 15 seconds, building heat and not moving enough air volume.

The VIAIR 400P/450P-RVS is a known kit because it’s bundled with the winterization accessory hose. It’s a 12V DC compressor, so it runs off your vehicle’s power. For a more versatile option, a portable RV compressor like the DeWalt DCC020IB or the Milwaukee M18 inflator can work if it has a regulated output and enough duty cycle.

Think in terms of CFM, not PSI. You want at least 1.0 CFM at 30 PSI. This is the same spec you’d look for in a compressor for sprinkler blowouts. For larger RVs with long pipe runs, stepping up to a 5-6 gallon home garage compressor ensures you won’t be waiting on tank refills.

Compressor Type	Best For	Limitation
12V DC (VIAIR-style)	On-the-go, no AC power	Lower CFM; may struggle with large RV volume.
Portable Battery-Powered (DeWalt, Milwaukee)	Quick jobs, smaller trailers	Duty cycle limits; battery drains on long blows.
5-6 Gallon Pancake (Porter-Cable, DeWalt)	Most mid-size RVs	Good balance of portability and volume.
Large Garage Compressor (≥10 Gallon)	Large fifth-wheels, repeated use	Heavy, requires AC power; best performance.

Your existing air compressor for tires might do the job if it has a regulator. But if you’re also maintaining a truck tire compressor for your rig, that unit likely has the guts for winterization too.

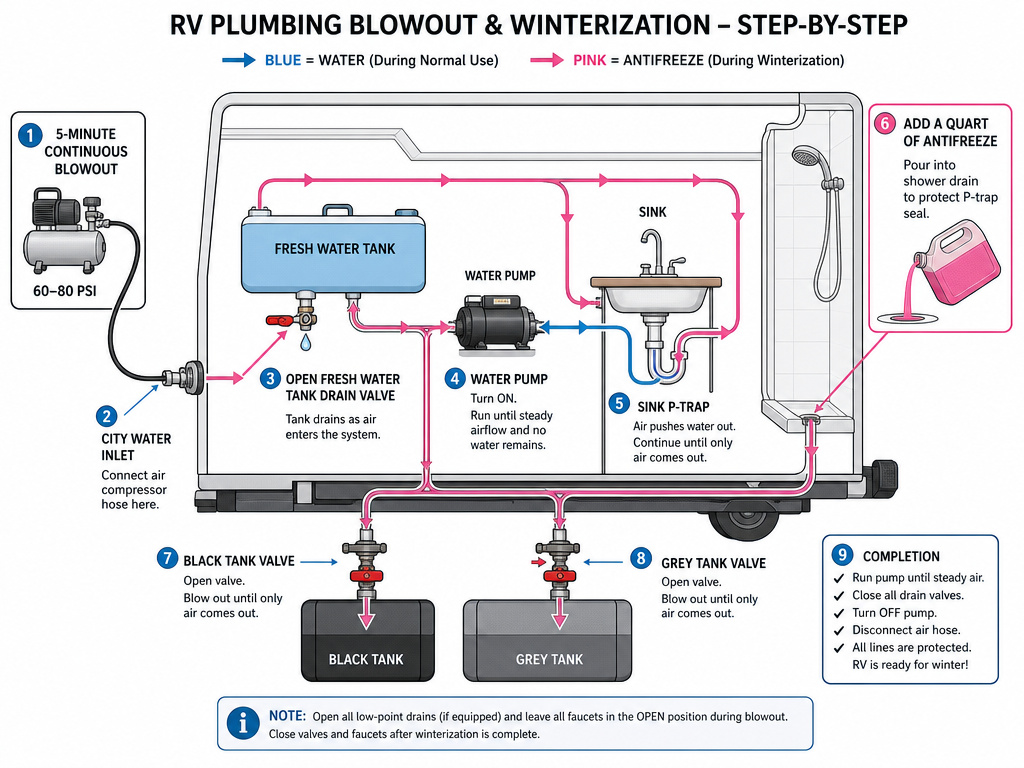

Low Points, Antifreeze, and Final Steps

The air compressor gets most of the water. It doesn’t get it all. You still need to address the fresh water tank, the water pump, and the drain traps.

Drain the fresh water tank completely via its dedicated drain valve. Leave the valve open for the winter. To protect the water pump, some owners pour a cup of RV antifreeze into the tank and run the pump briefly until pink liquid appears at the faucets, then shut it off. This coats the pump seals.

For the gray and black water tanks, flush them thoroughly, drain them, and then add one quart of RV antifreeze to each through a sink or shower drain. This protects the tank valves and seals from freezing.

Finally, inside the RV, pour a few ounces of antifreeze into every sink P-trap and the toilet bowl. This prevents any residual water in the trap from freezing and cracking the fixture.

Where this goes sideways: Assuming “blown out” means “bone dry.” Trapped water in a low point can take hours to travel to a drain. That’s why the Winnebago Travato manual recommends leaving the air compressor connected and blowing for 5 minutes continuously, it accounts for this slow migration.

Frequently Asked Questions

Can I use my regular air compressor to winterize my RV?

Yes, if it has a pressure regulator that can be set to 30 PSI or less and can provide sustained airflow. A small 3-gallon compressor may work for a small travel trailer if you’re patient, but a larger 5-6 gallon model is more reliable for clearing all the lines without constant cooling breaks.

What happens if I use too much PSI?

Exceeding 50 PSI risks damaging your RV’s plumbing. Plastic fittings can crack, push-to-connect joints can blow apart, and internal valves in faucets or the toilet can deform. The repair involves cutting open walls to access the broken pipe, a job far more expensive than a proper winterization.

Do I need to use antifreeze if I blow out the lines?

For the plumbing lines themselves, a thorough blow-out with compressed air is sufficient and often preferred by owners who dislike the taste of antifreeze. However, you should still pour RV antifreeze into all drain traps (sinks, shower) and the black/gray water tank valves to protect those seals from freezing, as air blowing doesn’t clear those cavities.

How do I winterize an RV with a tankless water heater?

The process changes. You must follow the manufacturer’s specific procedure, which often involves using a pump to circulate antifreeze through the unit’s internal heat exchanger. Blowing air through a tankless heater without following its manual can leave water trapped in small passages and void the warranty. Always consult your appliance’s manual first.

How long does it take to winterize an RV with an air compressor?

For a mid-size travel trailer, allowing for draining, setup, and two thorough blow-down cycles spaced 30 minutes apart, budget 2-3 hours. Rushing the job is the main cause of failure. The actual time the compressor is running might only be 15-20 minutes, but the waiting period for water to pool in low points is essential.

Before You Go

Winterizing with an air compressor is a clean, effective method that avoids gallons of pink antifreeze in your lines. The keys are respecting the 30 PSI limit, performing repeated blow-downs, and never skipping the water heater bypass. Your compressor’s ability to deliver volume matters more than its top pressure rating.

If you’re buying a compressor for this job, consider one that also serves as a reliable RV tire compressor for on-the-road inflation needs. The process isn’t complicated, but it is meticulous. Miss one low-point drain valve or rush the air blast, and you’ll be tracing leaks next spring. Do it right once, and you can trust the system will survive the deep freeze.
