Your Guide on How to Use a Craftsman Drill Correctly and Safely
This post contains affiliate links. As an Amazon Associate, we earn from qualifying purchases.
To use a Craftsman drill, first match the tool to your task: a standard variable-speed model for wood and metal, a hammer drill for masonry. Unplug the tool, insert the bit straight into the chuck jaws, tighten securely, then plug in and apply steady pressure with the correct speed setting. The 3/8-inch keyless chuck, variable speed trigger, and reversible function are your core controls, but the double-insulation design means you must never open the casing for repairs, that job belongs to a Sears technician.
That last point isn’t a suggestion. It’s the line between a safe tool and a potential hazard. Craftsman’s double-insulation system protects you without a grounding wire, but the moment you compromise that internal barrier, you assume a risk no DIY project justifies.
What follows is the owner’s manual they didn’t write: the real-world translation of speed settings, the reason your chuck seizes, the extension cord gauge that prevents motor burn-out, and the one material you should never drill for long. We’ll walk through the controls, the bit installation that prevents throws, and the safety protocols that keep you in the workshop and out of the emergency room.
Key Takeaways
- Double insulation is non-negotiable. If your Craftsman drill has this label, any internal repair must be done by a Sears-authorized technician. Opening the case yourself voids the safety system.
- Match speed to material. Use low speed for starting holes and ceramics, medium for hard metals and plastics, and high speed for wood and soft metals to prevent bit walking and burning.
- Insert bits straight. Angling a bit into the chuck jaws before tightening is a major cause of bits being thrown under load. Seat it fully and squarely.
- Extension cords have a minimum gauge. For a 100-foot cord on an 8-amp drill, you need 14 AWG wire. Anything thinner drops voltage, overheats the motor, and shortens the tool’s life.
- Avoid prolonged use on abrasive composites. Drilling fiberglass, wallboard, or plaster creates highly abrasive dust that accelerates wear on bearings and motor brushes, leading to premature failure.
The Core Safety Principle: Double Insulation
Your Craftsman drill likely has two layers of insulation between any live electrical component and the outer metal housing you touch. This design replaces the need for a three-prong grounded plug. It’s a robust safety system, until someone who isn’t qualified opens the tool.
Servicing of a tool with double insulation requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service we suggest you return the tool to your nearest Sears Store for repair.
That’s not legal boilerplate. It’s the direct warning from the Craftsman 315.262520 manual. The moment you break the seal and start poking inside, you potentially bridge that isolation gap. A reassembled drill might work, but it no longer carries its designed protection against electrical shock. This is why the warranty specifies that only Sears-authorized centers should perform repairs. It’s also why your first stop for a malfunctioning drill shouldn’t be your workbench; it should be the service department.
The same manual states that if any part is missing, broken, or bent, you must shut off the power, unplug the tool, and have the parts replaced before resuming work. This applies to a cracked handle, a worn chuck, or a faulty switch. Powering through a known fault is how minor issues become major hazards.
Know Your Model: Controls and Specs
Not all Craftsman drills are the same. A 3/8-inch center-handle drill and a 1/2-inch hammer drill share basic principles, but their capabilities and controls differ. Identifying your model is step zero.
| Model & Type | Key Specs | Best For | Critical Control |
|---|---|---|---|
| 315.262520 (Center Handle Drill) | 3/8″ keyless chuck, 0-2,500 RPM, 6.0 Amps, laser guide | General woodworking, metal drilling, driving screws | Variable speed trigger, forward/reverse slider, laser switch |
| 315.277180 (Hammer Drill) | 3/8″ keyless chuck, 0-1,200 RPM, 0-60,000 BPM, 5.0 Amps | Masonry, concrete, brick | Hammer mode selector, variable speed trigger |
| 172.281290 (Hammer Drill) | 1/2″ chuck capacity, 0-2,800 RPM, 0-44,800 BPM, 8.0 Amps | Heavy-duty masonry, prolonged concrete work | Rotary/hammer mode switch, side assist handle |
The common thread is the variable speed trigger. Squeeze it lightly for slow rotation, fully for top speed. This gives you control when starting a hole (preventing the bit from walking) and when driving screws (preventing over-tightening). The forward/reverse switch, usually located near the trigger, changes bit rotation. Forward for drilling and driving, reverse for removing screws or extracting a stuck bit.
For the models with a laser guide, note the specific warning: it’s a Class IIIa laser with a maximum output of <5 mW. Never stare directly into the beam. It’s meant for projecting alignment lines on your workpiece, not for aiming at people or reflective surfaces.
Installing and Removing Bits
This is the most frequent point of failure, both in technique and in tool longevity. The process is simple, but skipping one detail leads to a loose bit or a damaged chuck.
Step 1: Unplug the drill. This is non-negotiable. You’re applying torque directly to the drive mechanism. An accidental trigger pull with your hand on the chuck is a guaranteed injury.
Step 2: Engage the spindle lock. On keyless chucks, depress the button near the chuck body. You’ll feel the internal mechanism click, preventing the spindle from turning. If your model lacks a lock, you’ll need to grip the chuck body firmly.
Step 3: Insert the bit straight. Open the chuck jaws wider than the bit shank. Raise the front of the drill slightly so the bit doesn’t fall out. Slide the bit in as far as it will go, ensuring it’s centered and straight. The manual for the 315.262520 explicitly warns against inserting the bit at an angle and then tightening, this uneven pressure can cause the bit to be thrown during operation.
Step 4: Tighten securely. Rotate the chuck body clockwise (following the “LOCK” arrow) by hand until it’s firmly snug. Do not use pliers or a wrench. The chuck is designed for hand-tightening; external tools over-stress the gears and lead to premature wear or breakage.
Step 5: Remove the bit. Unplug the drill, engage the spindle lock, and rotate the chuck body counterclockwise. The bit should release smoothly. If it’s stuck, do not hammer on it. Apply a few drops of penetrating oil where the shank meets the jaws, wait a minute, and try again with steady pressure.

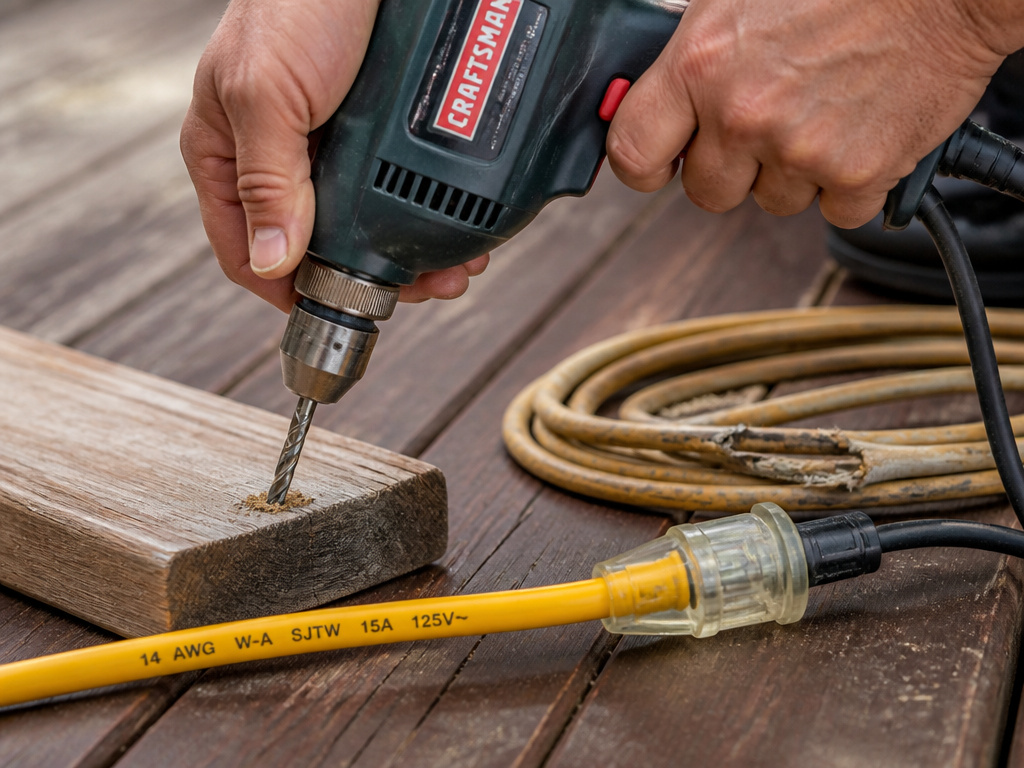

Power and Extension Cords
A Craftsman corded drill draws significant current, from 5.0 amps on the 315.277180 to 8.0 amps on the 172.281290. Using a long, thin extension cord is like trying to drink a thick milkshake through a coffee stirrer. The motor starves for power, overheats, and the copper windings inside can degrade.
The official manuals provide a clear gauge guide. For a 100-foot cord, you need a minimum of 14 AWG wire for an 8-amp tool. If you’re only running 50 feet, 16 AWG is acceptable. These ratings assume a standard 120V household circuit.
Check extension cords before each use. If damaged replace immediately. Never use tool with a damaged cord since touching the damaged area could cause electrical shock, resulting in serious injury.
Always use an outdoor-rated cord (marked “W-A” or “W”) for any work outside, and keep it clear of your drilling path to avoid snagging and tripping. A tangled cord is a recipe for a dropped drill or a pulled workpiece.
Mastering Speed and Direction
The variable speed trigger is your primary control for precision. Here’s how the Craftsman 315.10411 manual breaks it down:
| Speed Setting | Ideal For | Why It Works | Risk at Wrong Speed |
|---|---|---|---|
| Low Speed | Starting holes without a center punch, drilling ceramics, mixing paint. | Provides high torque at low rotation, preventing the bit from skidding. | Bit walks, cracks brittle materials, lacks power for penetration. |
| Medium Speed | Drilling hard metals (steel), plastics, and laminates. | Balances cutting force with heat management. | Overheats and melts plastics, work-hardens metals, dulls bits fast. |
| High Speed | Drilling wood, soft metals (aluminum, brass, copper), using driving accessories. | Maximizes RPM for clean, efficient cuts in softer materials. | Burns wood, creates galling in soft metal, strips screw heads. |
The forward/reverse switch is straightforward but vital. Always ensure you’re in forward (typically indicated by an arrow pointing clockwise) for drilling and driving. The reverse function is for back-out operations only. Running a drill in reverse under load can unscrew the chuck itself over time.
For hammer drills, the mode selector is your key. Use the rotary-only setting for drilling wood and metal. Engage the hammer mode (often marked with a hammer icon) only when drilling into masonry, concrete, or brick. The hammer mechanism delivers rapid, short pounding actions along with the rotation to pulverize hard material. Using hammer mode on wood will destroy your bit and damage the tool’s internal anvils.
What Not to Drill (And Why)
Craftsman manuals contain a specific, often-overlooked warning about abrasive materials. It’s not about hardness; it’s about dust.
It has been found that electric tools are subject to accelerated wear and possible premature failure when they are used on fiberglass boats, sports cars, wallboard, spackling compounds, or plaster. The chips and grindings from these materials are highly abrasive to electric tool parts such as bearings, brushes, commutators, etc.
This means the dust from drilling a hole in drywall or fiberglass acts like grinding compound inside your drill’s motor and gearbox. It gets past seals and abrades bearing surfaces, commutator contacts, and brush materials. The tool will sound gritty, lose power, and eventually seize. If you must drill these materials, clean the tool’s exterior vents thoroughly with compressed air immediately afterward. For extended projects, a dedicated, older tool is a better sacrifice.
Laser Guide Alignment and Use
The dual-line laser guide on models like the 315.262520 is a useful alignment aid for plumbing and leveling. When you depress the laser switch, it projects two perpendicular lines onto your workpiece. The built-in bubble levels help you orient the drill.
If the laser lines become misaligned, the manual instructs you to seek an authorized service representative or the laser manufacturer. This isn’t a user-serviceable part. The laser unit comes from the factory pre-aligned, and tampering with it can affect its calibration and safety ratings. Remember the core rule: never look directly into the beam, and never point it at anything other than your work surface.
Frequently Asked Questions
Can I use my Craftsman drill to mix paint or mortar?
Yes, but you must use a dedicated mixing paddle attachment designed for the chuck size, and operate at a low speed. High-speed mixing will whip air into the material and create a mess. Also, clean the paddle and chuck thoroughly immediately after use before the material hardens.
Why does my drill chuck keep loosening during use?
There are two likely causes. First, you may not be tightening it sufficiently by hand. Second, you might be running the drill in reverse under load, which can gradually unscrew a keyless chuck. Always hand-tighten firmly and use reverse only for brief, unloaded back-out operations.
The lock-on button, found on the handle of some models, is for continuous running during extended drilling or sanding tasks. To engage, depress the trigger, push and hold the lock-on button, then release the trigger. The drill will run until you depress the trigger again. Crucial safety note: If the drill is locked on and the power cord becomes disconnected, disengage the lock immediately upon re-plugging to prevent an unexpected start.
What’s the difference between a drill and a hammer drill?
Standard drill only rotates the bit. A hammer drill, like the Craftsman 315.277180, both rotates and delivers rapid, short hammering blows along the axis of the drill bit. This pounding action is essential for breaking into masonry, concrete, and brick. Using a standard drill on concrete will dull the bit almost instantly and strain the motor.
How do I know when my drill needs service?
Listen and feel for changes. A pronounced grinding noise, excessive sparking from the vents, a burning electrical smell, loss of power under normal load, or a chuck that wobbles are all signs of internal wear or damage. When these appear, stop using the tool and take it to a Sears-authorized service center.
The Bottom Line
Using a Craftsman drill correctly means respecting its design. That starts with understanding its double-insulation safety system and ends with choosing the right speed for your material. The variable speed trigger and keyless chuck are there for your control, not as suggestions. Keep your extension cord heavy enough, your bits straight in the chuck, and your work area clear. When the tool eventually wears, especially if you’ve drilled abrasive composites, let a qualified technician open it up. That’s the trade for a tool that’s kept you safe for years. Now go attach that shelf.
