12V Drill vs 20V Drill: The Real-World Performance Gap

Choosing between a 12V and a 20V drill comes down to three things: the size of the space you work in, the thickness of the material you drill, and how long you need to run the tool. A modern 12V brushless drill, like the Bosch GSR12V-31, delivers enough torque (31 Nm) for 90% of household tasks in a body that’s 18% shorter than its predecessor. A 20V drill, like the DeWalt DCD793B, packs more raw power (404 UWO) for driving large lag bolts or drilling dense, thick wood all day.

The gap isn’t academic. It’s a physical one. That 18% shorter head length on a 12V tool is the difference between fitting inside a kitchen cabinet to mount a shelf and having to angle the drill awkwardly from the outside. The 20V’s extra power isn’t about drilling more holes; it’s about drilling a one-inch hole through a doubled-up stud without stalling.

What follows: a breakdown of torque numbers that actually matter, the one spec that decides if a drill fits where you need it, and a direct comparison of which platform wins for overhead work, cabinet installs, and framing.

Key Takeaways

• A 12V brushless drill now matches the power of an entry-level 20V brushed model, making it sufficient for most drilling in wood, metal, and plastic.
• The critical measurement for tight spaces is head length, not total tool length. The Bosch PRO GSR12V-31 has a 144mm head.
• Raw power is measured in Units Watts Out (UWO) or Newton-meters (Nm), not voltage. A 20V drill like the DeWalt DCD793B offers 404 UWO.
• For all-day production work or drilling into masonry, the sustained power and battery capacity of a 20V system are non-negotiable.
• If you only buy one, get a 20V. If you already have a 20V platform, add a 12V for tight spaces and overhead work.

What’s the Real Power Difference Between 12V and 20V Drills?

Forget the voltage label. The real measure is torque, expressed as Newton-meters (Nm) or inch-pounds (in-lbs), and overall mechanical power called Units Watts Out (UWO). Voltage is just the potential; torque is what turns the chuck.

A modern 12V brushless drill is surprisingly potent. The Bosch GSR12V-31 produces 31 Nm of hard torque. The Skil PWRCore 12 brushless hammer drill hits 350 in-lbs (about 39.5 Nm). This is enough force to drive 3-inch wood screws into a doubled 2×4, drill half-inch holes in wood, and handle most assembly and repair tasks.

A 20V drill steps it up. The DeWalt DCD793B delivers 404 UWO, which the manufacturer states is up to 16% more power than its predecessor. This extra oomph translates to less stalling when you push a large spade bit or a hole saw through thick material. The top-tier 20V models, like the DeWalt DCD801B, are engineered to be over 100% more powerful than older generations.

The mechanical difference is in the motor and gearbox design. A 12V system uses a compact, high-efficiency brushless motor to maximize output from a smaller battery. A 20V system has more electrical potential to work with, allowing for a larger motor and more robust gearing that can sustain higher torque without overheating.

The practical difference shows up at the edge of the tool’s capacity. A 12V drill will complete a one-inch hole, but it might slow and groan. A 20V drill powers through with authority. For a dozen half-inch holes in pine, you won’t notice a gap. For fifty holes in oak, the 20V’s battery and thermal management will outlast.

Size, Weight, and Where You Actually Use Them

This is where the 12V platform makes its case. Power is similar, but physical dimensions are not.

The defining spec for working in confined areas is head length—the distance from the front of the chuck to the back of the gear housing. The Bosch PRO GSR12V-31 has a head length of 144mm, which Bosch notes is 18% shorter than the model it replaced. The DeWalt 12V Max drill driver is just 6 inches (152mm) from front to back. This compactness is why contractors reach for a 12V drill for cabinet installation, plumbing under sinks, or electrical work in crowded gang boxes.

Weight follows size. A 12V drill with a 2.0Ah battery often weighs under 2.5 pounds. The Bosch 12V Max pocket drill hits 1.8 pounds. A 20V drill with a comparable battery typically weighs over 3.5 pounds. That difference is trivial for a few screws. It’s everything after an hour of overhead work installing drywall or running conduit.

Where this goes sideways: Assuming a shorter overall tool length means better access. A 20V “compact” drill might have a short body but a long head. Always check the head-length spec, not just the marketing photos.

The 20V platform’s size is its trade-off. You gain a full-sized, metal 1/2-inch chuck that securely grips large bits and hole saws. You get more battery options, from compact 2.0Ah to high-capacity 5.0Ah packs for all-day runtime. For building a deck, framing a wall, or any project where the work is in front of you, the 20V’s heft is an advantage, not a burden.

Work Scenario	12V Drill Advantage	20V Drill Advantage
Inside Cabinets / Vanities	Unmatched maneuverability due to short head length.	Often too long; requires angled approaches.
Overhead Work (Ceiling fans, lighting)	Reduced fatigue from lighter weight.	Heavier; causes arm strain faster.
Drilling 1/2″ holes in 2x lumber	Adequate power for a few holes.	Faster, less stalling, especially in hardwoods.
Driving 3″ lag bolts	May struggle or require pre-drilling.	Higher torque drives them home reliably.
All-Day Production Work	Battery swaps are frequent; tool may overheat.	Larger batteries and better cooling sustain power.

Battery Life, Charging, and System Compatibility

Runtime isn’t just about battery Amp-hour (Ah) rating. A 20V 2.0Ah battery stores more total energy than a 12V 2.0Ah battery because it operates at a higher voltage. This gives the 20V tool a fundamental runtime advantage for the same physical battery size.

Charging times are broadly similar across modern lithium-ion systems, usually between 30 and 60 minutes for a depleted pack. However, your investment in a battery platform matters. If you already own several 20V DeWalt batteries and chargers, adding a 20V tool is seamless. The same is true for 12V systems within their own brand ecosystem.

Common mistake: Buying a 12V tool because the battery is cheaper. Factor in the cost of at least two batteries and a charger. A bare 20V tool added to an existing system is often the more economical choice.

A critical point of confusion is the marketing of 20V drill voltage. In North America, “20V MAX” denotes the initial, unloaded battery voltage. The nominal, operating voltage is 18V. This is the same physical platform as 18V tools sold elsewhere. There is no performance difference between an 18V and a 20V MAX drill from the same brand—they are the same tool with different labels. Understanding this marketing of 20V drill voltage prevents you from overpaying for a non-existent upgrade.

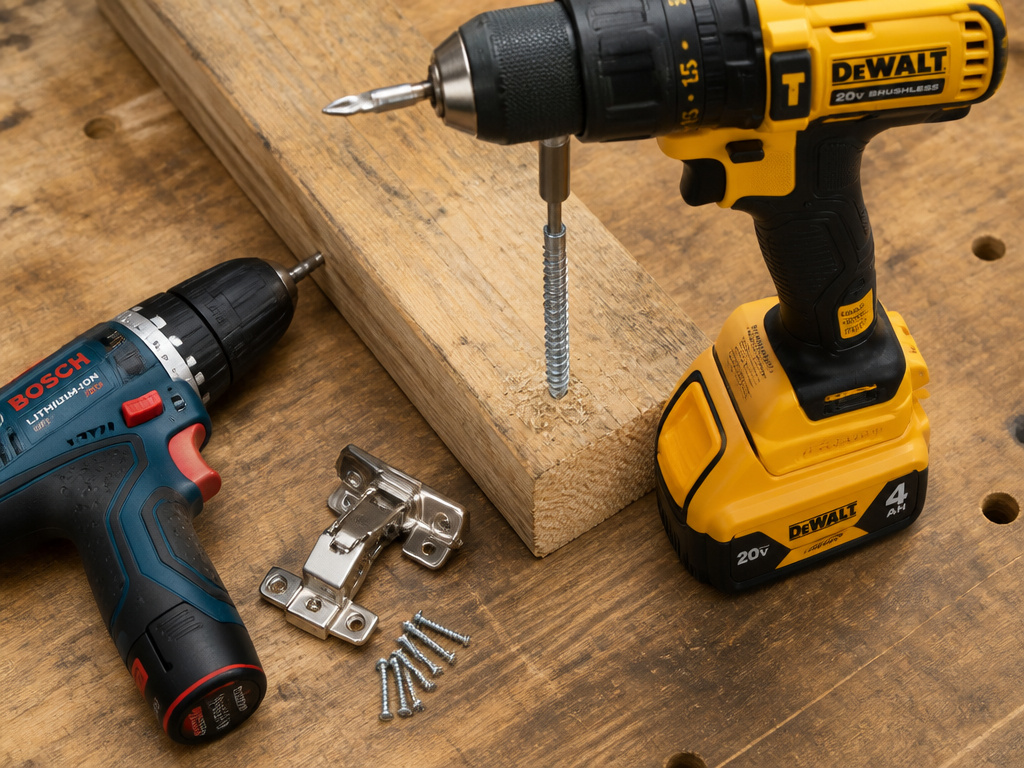

12V vs 20V: Direct Recommendations for Your Next Drill

Your next drill should solve the problems you actually have. Let’s match the tool to the task.

Choose a 12V Drill If:

• Your primary work is in finished spaces: cabinet installation, trim work, furniture assembly, or appliance repair.
• You frequently work overhead or in tight spots where tool weight and head length are limiting factors.
• Your projects involve mostly drilling pilot holes and driving screws no larger than #10.
• You want a dedicated, lightweight companion to a larger 20V drill.

The model to beat is the Bosch GSR12V-31. Its 144mm head length is best-in-class for tight spaces, and the 31 Nm torque handles most driving tasks. For ultimate versatility, the Bosch GSR 12V-35 FC with its FlexiClick attachment system offers right-angle and offset driving for impossible corners.

Choose a 20V Drill If:

• You are building, framing, or doing significant renovation that involves dense lumber, masonry, or metal.
• You need to drive large-diameter lag bolts or screws regularly.
• You want a single, do-everything drill for a home workshop or jobsite.
• Runtime between charges is a priority, and you can leverage larger battery packs.

The DeWalt DCD793B is the sweet spot. Its 404 UWO provides plenty of power for 95% of users, and its design is over two inches shorter than previous models. For maximum performance, the DeWalt DCD801B is their most powerful 2-speed drill, engineered for demanding applications.

I keep both. The 20V DeWalt lives in my workshop for builds and repairs. The 12V Bosch stays in a tool bag for quick house calls and projects inside the home. Trying to use only one for every job means compromising on every job.

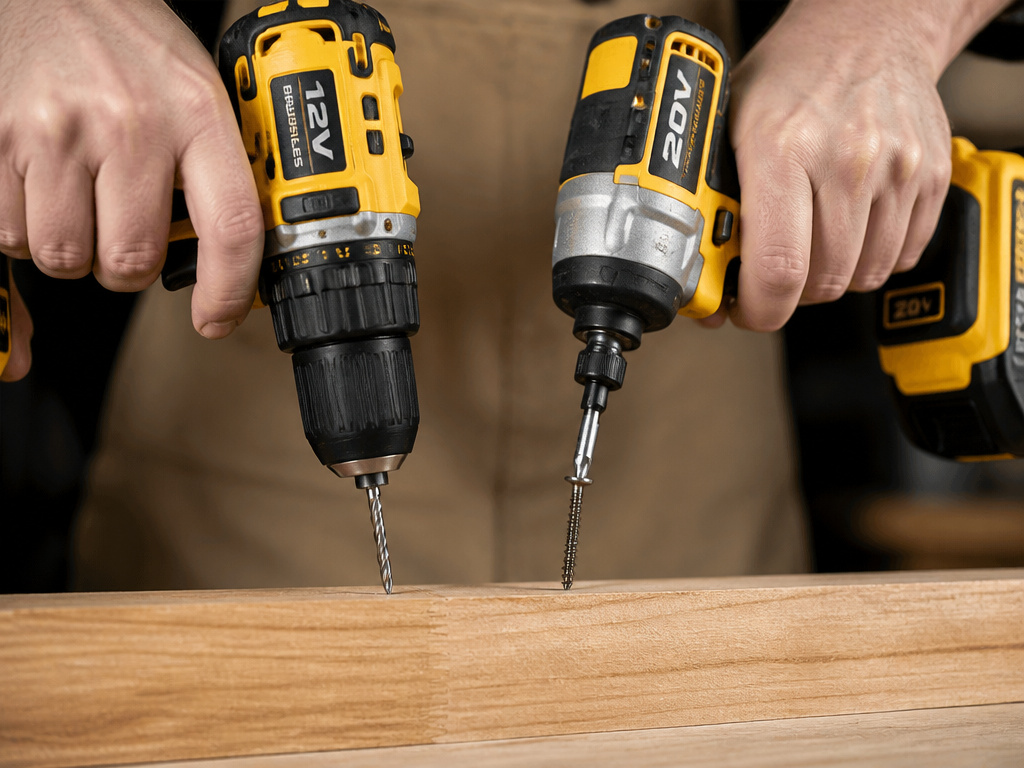

The Impact Driver Wild Card

This decision often overlaps with choosing an impact driver vs drill. An impact driver is a specialized tool for driving screws and bolts, using concussive rotational force (impacts) to generate extremely high torque.

• A 12V impact driver is a phenomenal partner to a 12V drill for assembly work, offering far more driving torque than the drill alone.
• A 20V impact driver is essential for heavy-duty fastening like deck building or automotive work.

For most DIYers, a compact drill vs impact driver combo kit in either voltage is the ideal starting point. The drill bores the holes, the impact driver drives the fasteners. This functional separation is more important than the voltage debate for many tasks.

Frequently Asked Questions

Can a 12V drill go through concrete?

Some 12V drills, like the Skil PWRCore 12, include a hammer drill function. They can drill small holes (up to 1/4-inch) in concrete or brick for anchors, but they are slow. For more than a few holes or larger diameters, a 20V hammer drill or a dedicated rotary hammer is the correct tool.

Is a 20V drill overkill for home use?

Not necessarily. If it’s your only drill, a 20V model ensures you’ll never lack power. The overkill risk is more about size and weight. If you’re only assembling flat-pack furniture, a 12V is simpler. For general home maintenance, a 20V is a more versatile single tool.

Do 12V and 20V batteries charge at the same speed?

Generally, yes, if using similar technology chargers. A standard charger might take 45-60 minutes for a 2.0Ah battery, regardless of voltage. However, drill battery charge time varies by charger amperage and battery condition. Premium fast chargers can cut this time significantly.

Which holds its value better, 12V or 20V?

20V tools and batteries generally have higher resale value and a larger used market. The 20V platform is the dominant standard for cordless power tools, making it a safer long-term ecosystem investment. Niche 12V systems can become obsolete if a brand discontinues the line.

Should I match my drill voltage with my other tools?

Yes, if possible. Platform loyalty saves significant money on batteries and chargers. If you own several 20V tools, stick with 20V for your drill. The convenience of shared batteries outweighs a minor spec advantage from a different brand’s 12V tool. This is why drill and impact driver sets in a single ecosystem are so popular.

Before You Go

The 12V vs 20V drill choice isn’t about finding the “best” drill. It’s about matching tool geometry and power delivery to your physical workspace and material.

For tight quarters and light-to-medium duty, the modern 12V brushless drill is a revelation. It collapses the performance gap, leaving size as its primary advantage. For the workshop, the jobsite, or any project that demands sustained power, the 20V platform remains the default for a reason.

Start with a 20V drill if you’re building a tool collection from zero. It’s the broader foundation. Then, add a 12V drill later for the jobs where the bigger tool gets in its own way. This two-drill approach, not an either-or decision, is what the Consumer Reports cordless drill review data supports: the right tool for the segment wins every time.
